Tektronix LPD64 6-BW-6000
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz (option 6-BW-6000) |
| Number of Analog Channels | 4 (TekVPI inputs) |
| Sample Rate | 25 GS/s on all channels |
| Record Length | 62.5 M points standard (up to 1 G optional) |
| Vertical Resolution | 12-bit ADC (up to 16-bit in High Res mode) |
| Display | None (2U low-profile rack-mount chassis, remote/web UI) |
| DDC / Spectrum | Spectrum View with digital down-conversion on each channel |
| Series | Tektronix 6 Series Low Profile Digitizer |
The Tektronix LPD64 6-BW-6000 is the 6 GHz bandwidth configuration of the LPD64, a 4-channel 6 Series Low Profile Digitizer: a 2U low-profile digitizer based on the 6 Series MSO platform, built for automated test, rack systems and multi-channel RF and high-speed measurements.
Bandwidth is set by software option, so the LPD64 can be ordered at 1 GHz, 2.5 GHz, 4 GHz, 6 GHz, 8 GHz. This listing is for the 6 GHz unit (option 6-BW-6000). For other bandwidths, see the LPD64 overview page.

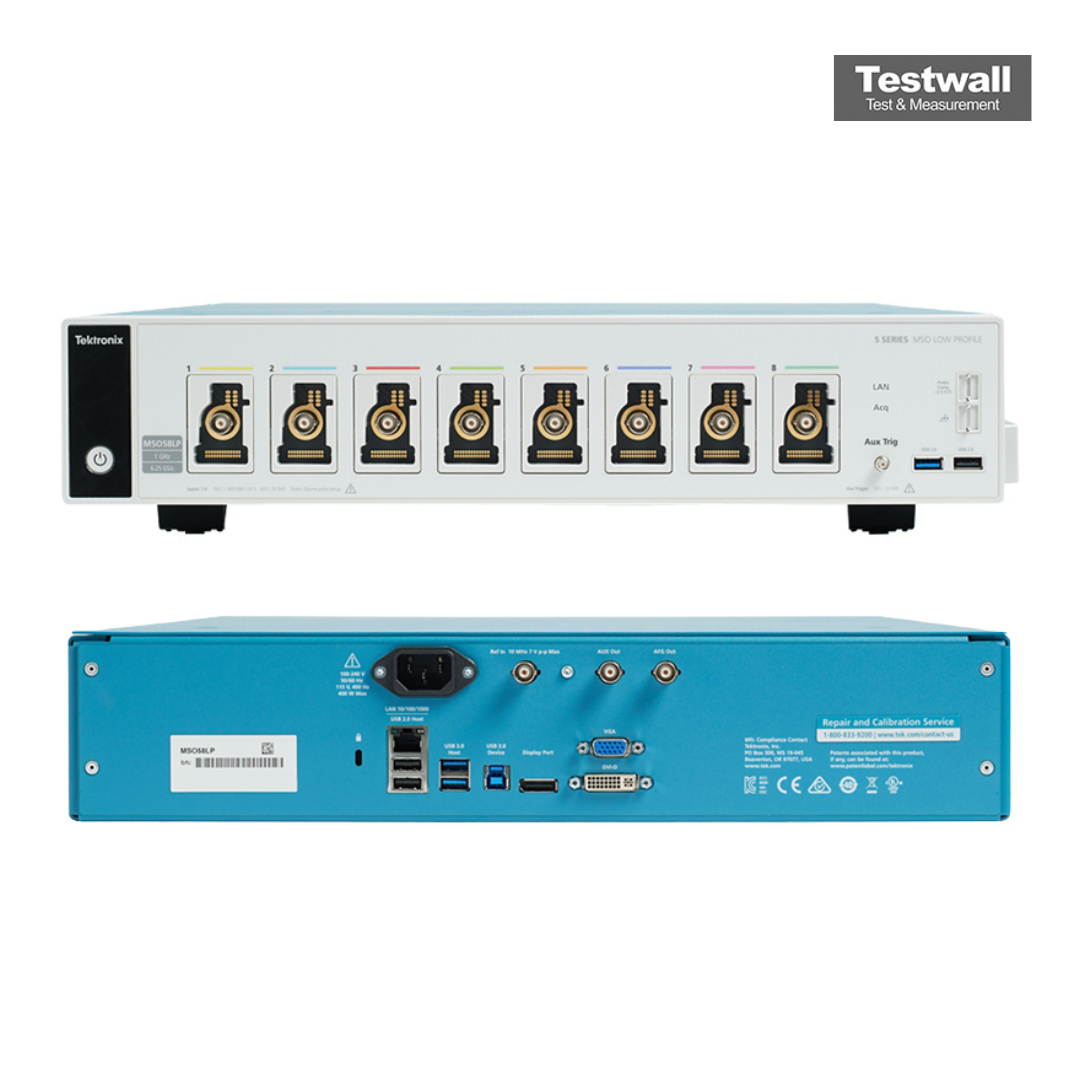

Image shows the MSO58LP, which uses the same low-profile chassis.
Testwall can supply the used Tektronix LPD64 6-BW-6000, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request. Please contact us if you need calibration or repair of the Tektronix LPD64.
