Tektronix TLA7E2
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Sample Rate | 2 GHz Timing, 235 MHz State |
| Memory Depth | 128 Mb per channel |
| Threshold Accuracy | ±50 mV |
| Input Voltage Range | -2.0 V to +7.0 V |
| Minimum Detectable Pulse Width | 500 ps |
| Module Type | Logic Analyzer Module |
| Compatible Mainframe | TLA7000 Series |
| Input Impedance | 100 kΩ ±2% in parallel with 8 pF ±2 pF |
| Operating Temperature | 0°C to +50°C |
Tektronix TLA7E2 Options:
- TLA7E2 - Opt. A1 - Universal Euro 220 VAC; 50 Hz power plug
- TLA7E2 - Opt. A2 - UK 240 VAC; 50 Hz power plug
- TLA7E2 - Opt. A3 - Australian 240 VAC; 50 Hz power plug
- TLA7E2 - Opt. A4 - North American 240 VAC; 60 Hz power plug
- TLA7E2 - Opt. A5 - Switzerland 220 VAC; 50 Hz power plug
- TLA7E2 - Opt. A99 - No Power Cord
- TLA7E2 - Opt. IN - Product installation service (on-site configuration and user familiarization; excluding network integration)
- TLA7E2 - Opt. R3 - Extends depot repair warranty service period to three years
- TLA7E2 - Opt. S1 - Uplifts standard one-year warranty service to on-site service
- TLA7E2 - Opt. S3 - Uplifts Opt. C3 and/or R3 to on-site service (must be ordered with Opt. C3 and/or R3)
- TLA7E2 - Opt. C3 - Three years of Calibration Service (includes initial calibration and two annual calibrations)
- TLA7E2 - Opt. D1 - Add calibration test data report
- TLA7E2 - Opt. D3 - Provides test data for each calibration (must be ordered with Opt. C3)
| Model | TLA7E2 |
|---|

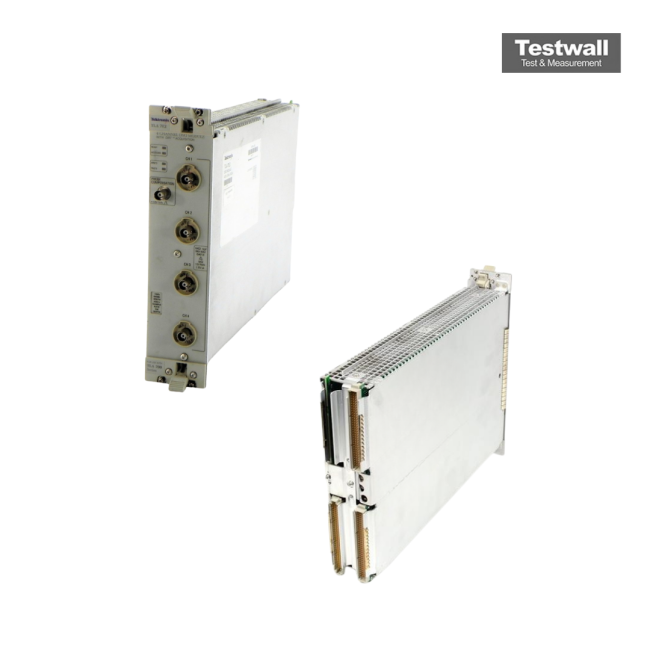

The Tektronix TLA7E2 is a high-performance 4-channel digitizing oscilloscope module featuring a 1 GHz bandwidth and up to 5 GS/s sample rate. Each channel supports 15 K memory depth, offering reliable signal acquisition for detailed timing and analog analysis. With advanced triggering capabilities—such as Pulse Width, Runt, and Setup-and-Hold Violation detection—the TLA7E2 delivers precise signal correlation within digital systems.
Designed for integration into the TLA700 Series logic analyzers, the TLA7E2 enables synchronized analysis of analog and digital signals. Its flexible input configurations and wide sensitivity range make it ideal for debugging complex electronic circuits.
Testwall can supply the used Tektronix TLA7E2, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7E2.
