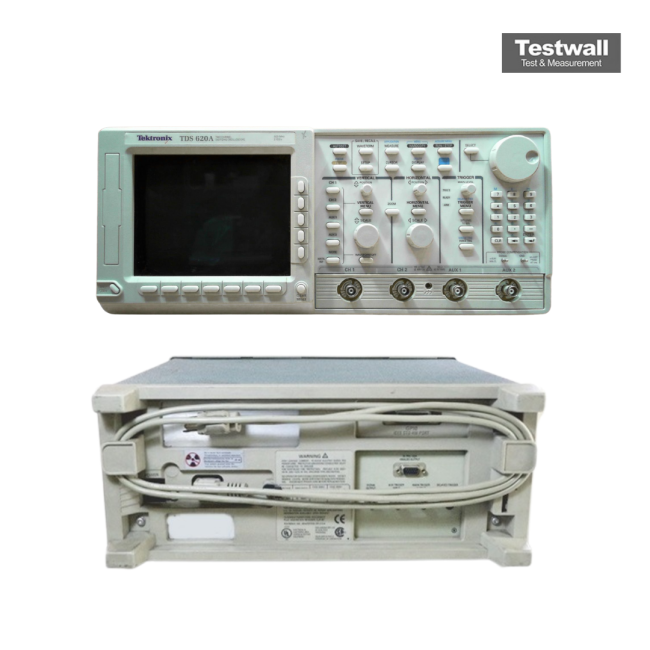

Tektronix TDS620A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Sample Rate | 2.5 GS/s (single channel), 1.25 GS/s (two channels) |
| Number of Channels | 2 |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD display |
| Connectivity / Interface | GPIB, RS-232, Centronics parallel port |
Tektronix TDS620A Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS620A - 05 - Video trigger
- TDS620A - 13 - RS-232 and Centronics interfaces
- TDS620A - 1F - Built-in floppy disk drive
- TDS620A - 1M - Long record length
- TDS620A - 2F - Advanced DSP math
- TDS620A - 1R - Rack mount configuration
- TDS620A - 1K - Instrument cart
The Tektronix TDS620A is a 500 MHz digital real-time oscilloscope offering 2+2 auxiliary channels with 1mV to 10V/div sensitivity and 8-bit resolution. It features a 2 GS/s sample rate across all channels, a 2,000-point max record length, and ±100 ppm time base accuracy from 500 ps/div to 5 s/div. Its high-resolution color VGA display and DOS floppy disk drive enhance data visibility and portability.
With advanced triggering options including pulse width, glitch, runt, pattern, and state triggers, the TDS620A enables accurate signal analysis. It supports waveform pass/fail testing, 25 auto measurements, and GPIB programmability.
Testwall can supply the used Tektronix TDS620A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS620A.
