Tektronix TDS644A
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 2 GS/s (single channel), 1 GS/s (two channels), 500 MS/s (four channels) |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.2 cm (4 in) color LCD display |
| Connectivity/Interface | GPIB, RS-232, Centronics parallel port, floppy disk drive |
Tektronix TDS644A Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS644A - 05 - Video trigger
- TDS644A - 13 - RS-232 and Centronics interfaces
- TDS644A - 1F - Built-in floppy disk drive
- TDS644A - 1M - Long record length
- TDS644A - 2F - Advanced DSP math
- TDS644A - 1R - Rack mount configuration
- TDS644A - 1K - Instrument cart

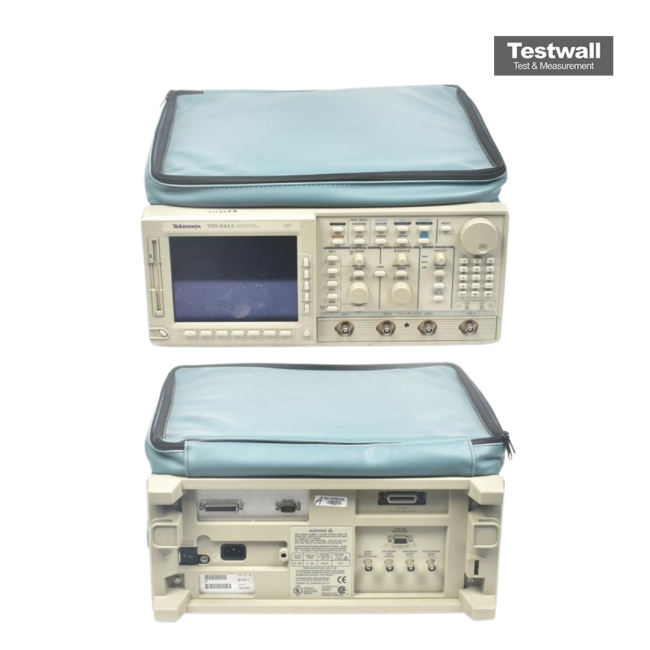

The Tektronix TDS644A is a 4-channel digitizing oscilloscope featuring a 500 MHz bandwidth and a 2 GS/s real-time sampling rate. It supports a record length of 2,000 points per channel, with advanced waveform math, DSP, and color VGA display. Connectivity includes RS-232, GPIB, Centronics, and VGA I/O ports.
Ideal for production testing, design validation, and troubleshooting, it captures and analyzes voltage/current signals for time-based characteristics like amplitude and frequency.
Testwall can supply the used Tektronix TDS644A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS644A.
