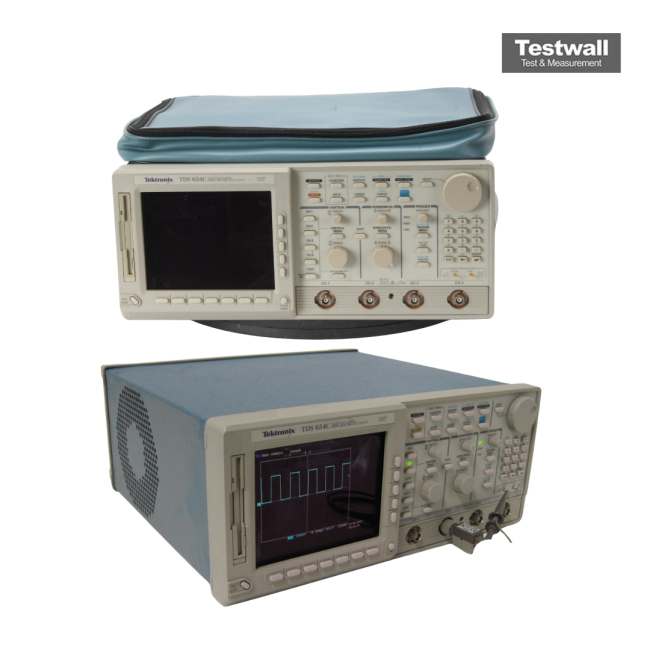

Tektronix TDS654C
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Rise Time | 350 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Time Base Range | 500 ps/div to 10 s/div |
| Display | Color LCD, 640 x 480 resolution |
| Connectivity | GPIB, RS-232, Centronics |
Tektronix TDS654C Options:
- TDS654C - Opt. 05 - Video Trigger, NTSC, PAL, HDTV, FlexFormat™
- TDS654C - Opt. 1K - Model K420 Instrument Cart
- TDS654C - Opt. 1R - Rackmount Kit
- TDS654C - Opt. 34 - Add 1 ea. P6247 Differential Probe
- TDS654C - Opt. 35 - Add 1 ea. P6243 Active Probe
- TDS654C - Opt. 36 - Add 1 ea. P6139A Passive Probe
- TDS654C - Opt. HD - Internal Hard Disk Drive
- TDS654C - Opt. D1 - Calibration Data Report
- TDS654C - Opt. A1 - Universal Euro 220 V, 50 Hz
- TDS654C - Opt. A2 - UK 240 V, 50 Hz
- TDS654C - Opt. A3 - Australian 240 V, 50 Hz
- TDS654C - Opt. A4 - North American 240 V, 60 Hz
- TDS654C - Opt. A5 - Switzerland 220 V, 50 Hz
- TDS654C - Opt. C3 - Three years of Calibration Services
- TDS654C - Opt. C5 - Five years of Calibration Services
- TDS654C - Opt. D3 - Test Data (requires Opt. C3)
- TDS654C - Opt. D5 - Test Data (requires Opt. C5)
- TDS654C - Opt. R5 - Repair warranty extended to cover five years
| Model | TDS654C |
|---|
The Tektronix TDS654C is a high-performance benchtop oscilloscope offering 500 MHz bandwidth and 4 simultaneous channels, each capable of 2.5 GSa/s sampling rate. It features a 15 000 pt/sec record length, 8‑bit resolution, and versatile input options with 1 MΩ and 50 Ω impedance. Its 17.78 cm color CRT provides clear waveform visualization with Dot, Persistence, and Vector display modes.
Equipped with a wide sensitivity range (1 mV/div to 10 V/div), advanced trigger modes, and a precise time base from 200 ps/div to 10 s/div, it suits complex signal diagnostics in research and industrial labs.
Testwall can supply the used Tektronix TDS654C, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS654C.
