Tektronix TDS754A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GS/s (single channel), 1 GS/s (each channel, all channels active) |
| Record Length | Up to 130,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω (selectable) |
| Display | 10.4-inch color LCD display |
| Trigger Types | Edge, Glitch, Runt, Slew Rate, Logic, Pulse Width, Setup/Hold |
Tektronix TDS754A Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS754A - 05 - Video trigger
- TDS754A - 13 - RS-232 and Centronics interfaces
- TDS754A - 1F - Built-in floppy disk drive
- TDS754A - 1M - Long record length
- TDS754A - 2F - Advanced DSP math
- TDS754A - 1R - Rack mount configuration
- TDS754A - 1K - Instrument cart

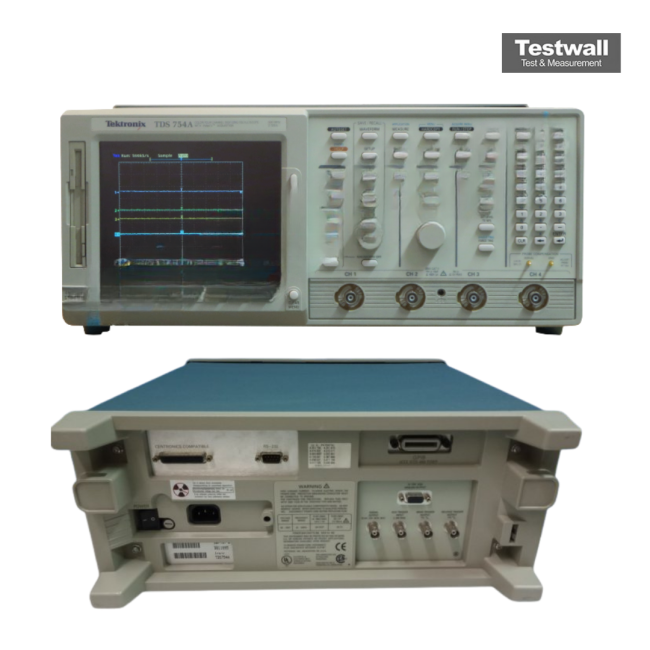

The Tektronix TDS754A is a 4-channel digitizing oscilloscope offering 500 MHz bandwidth, with 2 Gs/s sampling rate on channels 1 and 2, and 1 Gs/s on channels 3 and 4. Its advanced multiprocessor architecture delivers enhanced analysis capabilities for detailed signal assessment.
Ideal for R&D, electromechanical applications, telecom design, and component characterization, the TDS754A ensures reliable performance with its clear color display for optimal readability.
Testwall can supply the used Tektronix TDS754A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS754A.
