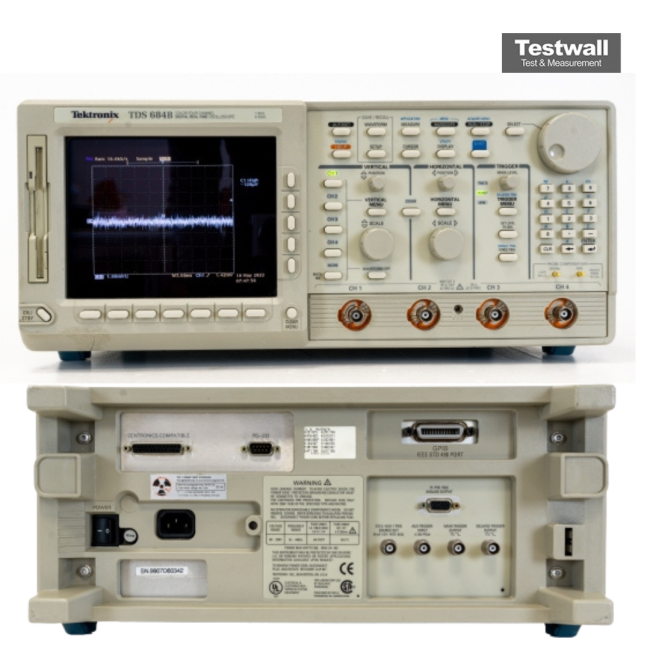

Tektronix TDS684B
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 5 GS/s |
| Number of Channels | 4 |
| Record Length | 15,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 50 Ω or 1 MΩ |
| Display Type | Color LCD |
| Trigger Modes | Edge, Glitch, Runt, Slew Rate, Logic, Pulse Width, Setup/Hold |
Tektronix TDS684B Options:
- TDS684B - Opt. 05 - Video Trigger, NTSC, PAL, HDTV, FlexFormat™
- TDS684B - Opt. 1K - Model K420 Instrument Cart
- TDS684B - Opt. 1R - Rackmount Kit
- TDS684B - Opt. 26 - Add four P6245 1.5 GHz, 1pF FET Probes
- TDS684B - Opt. D1 - Calibration Data Report
- TDS684B - Opt. A1 - International Power Plug Option A1
- TDS684B - Opt. A2 - International Power Plug Option A2
- TDS684B - Opt. A3 - International Power Plug Option A3
- TDS684B - Opt. A4 - International Power Plug Option A4
- TDS684B - Opt. A5 - International Power Plug Option A5
- TDS684B - Opt. C3 - Three years of Calibration Services
- TDS684B - Opt. C5 - Five years of Calibration Services
- TDS684B - Opt. D3 - Test Data (requires Opt. C3)
- TDS684B - Opt. D5 - Test Data (requires Opt. C5)
- TDS684B - Opt. R5 - Repair warranty extended to cover five years
| Model | TDS684B |
|---|
The Tektronix TDS684B is a 1 GHz, 4-channel digital oscilloscope offering 5 GSa/s sampling and 29 automatic measurements. It supports high-resolution waveform capture and precise signal characterization with a timebase accuracy of 10 ppm. This makes it ideal for capturing fast transients and high-speed signals in demanding environments.
Suitable for troubleshooting, design, and production testing, the TDS684B provides detailed insight into amplitude, frequency, and rise times of electronic signals, making it a key tool for advanced diagnostics.
Testwall can supply the used Tektronix TDS684B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS684B.
