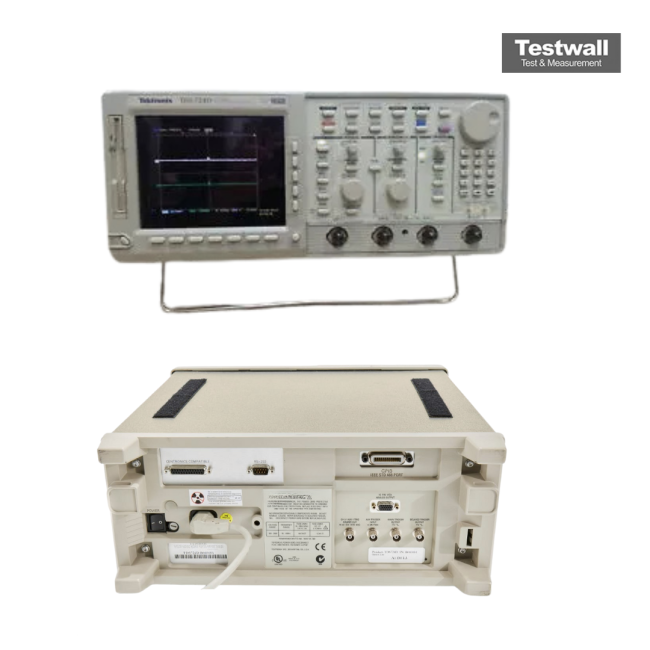

Tektronix TDS724D
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Sample Rate | 2 GS/s (single channel), 1 GS/s (all channels) |
| Number of Channels | 4 |
| Record Length | Up to 15,000 points per channel |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD, 640 x 480 resolution |
| Trigger Types | Edge, Glitch, Runt, Slew Rate, Logic, Pulse Width, Setup/Hold, Video |
| Connectivity / Interface | GPIB, RS-232, Centronics (Parallel), Floppy Disk Drive |
Tektronix TDS724D Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS724D - 05 - Video trigger
- TDS724D - 13 - RS-232 and Centronics interfaces
- TDS724D - 1F - Built-in floppy disk drive
- TDS724D - 1M - Long record length
- TDS724D - 2F - Advanced DSP math
- TDS724D - 1R - Rack mount configuration
- TDS724D - 1K - Instrument cart
The Tektronix TDS724D is a 500 MHz, 2-channel Digital Phosphor Oscilloscope (DPO), offering real-time acquisition of amplitude, time, and intensity distribution for advanced signal diagnostics.
Designed for modern electronic debugging, it provides instant visibility into signal dynamics, capturing transient and infrequent events with high fidelity.
Testwall can supply the used Tektronix TDS724D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS724D
