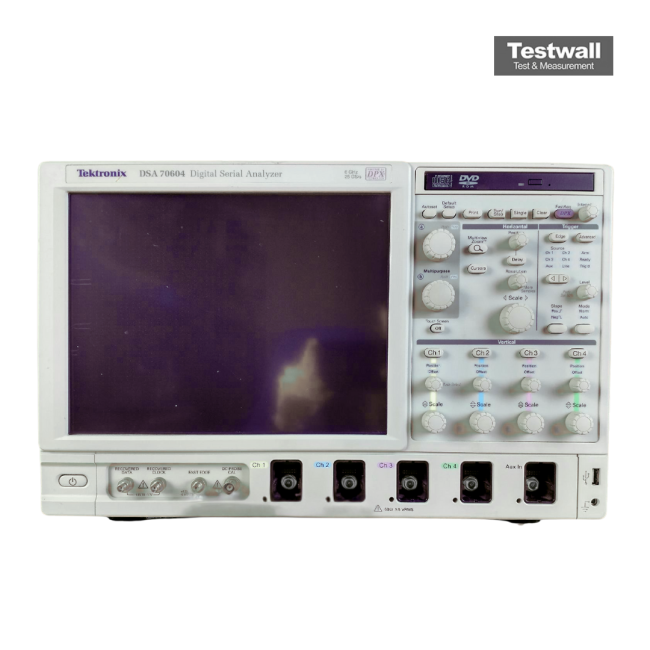

Tektronix DSA70604B
4 Ch 6 GHz Digital Signal Analyzer
6 GHz Bandwidth
25 GS/s on all 4 channels simultaneously Sample Rate
4 Number of Channels
8 bits (up to 11 bits with Hi-Res acquisition mode) Vertical Resolution
Up to 250 Mpoints per channel Record Length
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Sample Rate | 25 GS/s on all 4 channels simultaneously |
| Number of Channels | 4 |
| Vertical Resolution | 8 bits (up to 11 bits with Hi-Res acquisition mode) |
| Record Length | Up to 250 Mpoints per channel |
| Rise Time | 58.3 ps (typical) |
| Input Impedance | 50 Ω and 1 MΩ |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Display | 12.1-inch TFT color LCD display with 1024 x 768 resolution |
| Operating System | Windows XP Embedded |
Tektronix DSA70604B Options:
- DSA70604B - A0 - Power Cord, North America
- DSA70604B - A1 - Power Cord, Universal Euro
- DSA70604B - A2 - Power Cord, United Kingdom
- DSA70604B - A3 - Power Cord, Australia
- DSA70604B - A5 - Power Cord, Switzerland
- DSA70604B - A6 - Power Cord, Japan
- DSA70604B - A10 - Power Cord, China
- DSA70604B - A11 - Power Cord, India
- DSA70604B - A99 - No power cord or AC adapter
| Model | DSA70604B |
|---|
The Tektronix DSA70604B is a 4-channel, 6 GHz digital signal analyzer and real-time digital phosphor oscilloscope offering high signal fidelity, low internal noise, and up to 20 GHz bandwidth for optimal RF and serial testing.
It includes advanced features like DPX for rapid event capture, Pinpoint Triggering, waveform pattern matching, and application support for automated compliance testing and debugging complex designs.
Testwall can supply the used Tektronix DSA70604B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA70604B.
