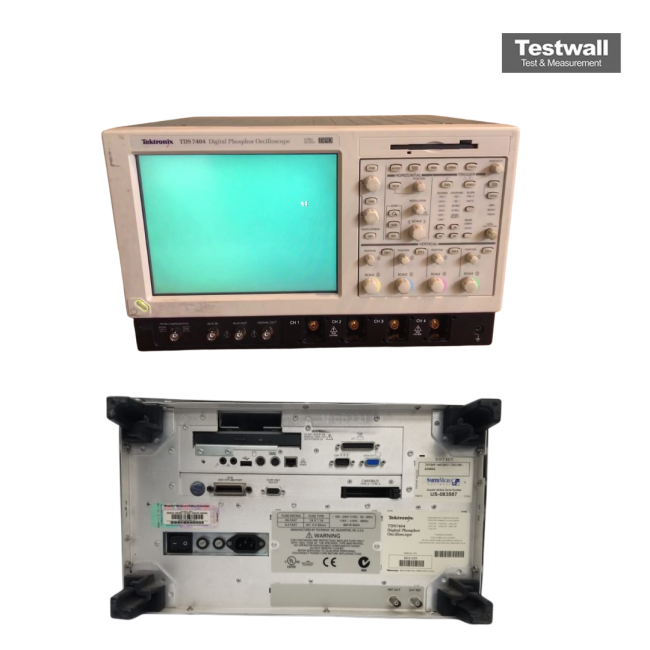

Tektronix TDS7404
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GS/s (single channel), 10 GS/s (2 channels), 5 GS/s (4 channels) |
| Record Length | Up to 500,000 points on all channels simultaneously |
| Vertical Resolution | 8 bits (11 bits with Hi Res acquisition mode) |
| Rise Time | 87.5 ps |
| Input Impedance | 50 Ω or 1 MΩ (with probe) |
| Display | 10.4-inch color LCD display |
| Operating System | Windows XP Embedded |
| Connectivity | GPIB, Ethernet (10/100Base-T), USB, CD-RW drive |
Tektronix TDS7404 Options:
- TDS7404 - 1M - Acquisition Memory: 2 Msamples max, 500 ksamples/ch
- TDS7404 - 2M - Acquisition Memory: 8 Msamples max, 2 Msamples/ch
- TDS7404 - 3M - Acquisition Memory: 16 Msamples max, 4 Msamples/ch
- TDS7404 - 4M - Acquisition Memory: 32 Msamples max, 8 Msamples/ch
- TDS7404 - 1K - Mounting: K4000 Scope cart
- TDS7404 - 1R - Mounting: Rackmount kit
- TDS7404 - J1 - Software: TDSJIT2 Jitter Analysis Software
- TDS7404 - J2 - Software: TDSDDM2 Disk Drive Analysis Software
- TDS7404 - 30 - Probe: No Probes
- TDS7404 - 51 - Probe: Add (1) P7240 4 GHz Active Probe
- TDS7404 - 52 - Probe: Add (1) P7330 3 GHz Differential Probe
- TDS7404 - A1 - Power Cord: Universal European power cord (220 V, 50 Hz)
- TDS7404 - A2 - Power Cord: UK power cord (240 V, 50 Hz)
- TDS7404 - A3 - Power Cord: Australia power cord (240 V, 50 Hz)
- TDS7404 - A5 - Power Cord: Switzerland power cord (220 V, 50 Hz)
- TDS7404 - A99 - Power Cord: No power cord
- TDS7404 - AC - Power Cord: China power cord
- TDS7404 - D1 - Service: Calibration data report
- TDS7404 - C3 - Service: Additional 2 years of calibration
- TDS7404 - D3 - Service: Calibration data report for Option C3
- TDS7404 - R3 - Service: Additional 2 years of repair
| Model | TDS7404 |
|---|
The Tektronix TDS7404 oscilloscope offers 4 GHz bandwidth with up to 20 GS/s real-time sampling, a 32 Megasample memory, and waveform capture rates exceeding 400,000 wfms/s. It supports jitter measurements down to 1 ps RMS and provides a graphical interface via classic controls, touch-sensitive display, or mouse.
Ideal for high-speed signal analysis, jitter and spectral analysis, and transient investigations, the TDS7404 enables deep debugging with P7000 Series probes and TekConnect signal interconnects.
Testwall can supply the used Tektronix TDS7404, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS7404.
