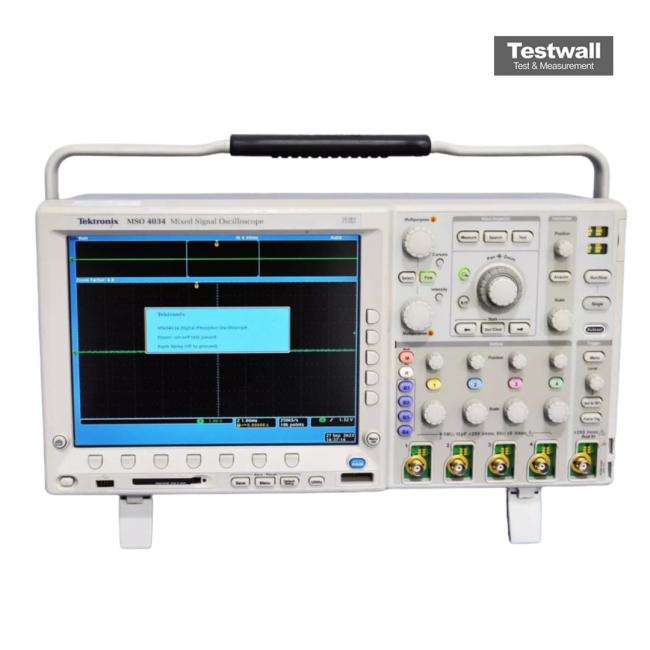

Tektronix MSO4034B
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 2.5 GS/s |
| Record Length | 10 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 1 ns |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4 inch color TFT LCD |
| Waveform Capture Rate | Up to 50,000 waveforms per second |
Tektronix MSO4034B Options:
- MSO4034B - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO4034B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO4034B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO4034B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO4034B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO4034B - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MSO4034B - Opt. A10 - China power plug (50 Hz)
- MSO4034B - Opt. A11 - India power plug (50 Hz)
- MSO4034B - Opt. A12 - Brazil power plug (60 Hz)
- MSO4034B - Opt. A99 - No power cord
- MSO4034B - Opt. L0 - English manual
- MSO4034B - Opt. L1 - French manual
- MSO4034B - Opt. L2 - Italian manual
- MSO4034B - Opt. L3 - German manual
- MSO4034B - Opt. L4 - Spanish manual
- MSO4034B - Opt. L5 - Japanese manual
- MSO4034B - Opt. L6 - Portuguese manual
- MSO4034B - Opt. L7 - Simplified Chinese manual
- MSO4034B - Opt. L8 - Traditional Chinese manual
- MSO4034B - Opt. L9 - Korean manual
- MSO4034B - Opt. L10 - Russian manual
- MSO4034B - Opt. L99 - No manual
- MSO4034B - Opt. C3 - Calibration Service 3 Years
- MSO4034B - Opt. C5 - Calibration Service 5 Years
- MSO4034B - Opt. D1 - Calibration Data Report
- MSO4034B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO4034B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO4034B - Opt. R5 - Repair Service 5 Years (including warranty)
- MSO4034B - Opt. SILV600 - Standard warranty extended to 5 years
- MSO4034B - DPO4EMBD - Embedded Serial Triggering and Analysis Module (I2C and SPI)
- MSO4034B - DPO4COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MSO4034B - DPO4AUTO - Automotive Serial Triggering and Analysis Module (CAN and LIN)
- MSO4034B - DPO4AUTOMAX - Extended Automotive Serial Triggering and Analysis Module (CAN, LIN, and FlexRay)
- MSO4034B - DPO4FLEX - FlexRay Serial Triggering and Analysis Module
- MSO4034B - DPO4AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MSO4034B - DPO4AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MSO4034B - DPO4USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, and high-speed)
- MSO4034B - DPO4ENET - Ethernet Serial Triggering and Analysis Module (10BASE-T and 100BASE-TX)
- MSO4034B - DPO4PWR - Power Analysis Application Module
- MSO4034B - DPO4LMT - Limit and Mask Testing Application Module
- MSO4034B - DPO4VID - HDTV and Custom (nonstandard) Video Triggering Module
| Model | MSO4034B |
|---|
The Tektronix MSO4034B Mixed Signal Oscilloscope offers 4 analog and 16 digital channels with 350 MHz bandwidth, 2.5 GS/s sampling, and 20M record length per channel. It includes advanced triggers, 41 automated measurements, Wave Inspector® controls, FFT analysis, and optional serial protocol decoding for I2C, SPI, USB, and more. It also supports power analysis and video testing, with a bright 10.4-inch XGA display, TekVPI® probe interface, and extensive USB/Ethernet connectivity.
Engineered for mixed signal environments, the MSO4034B simplifies debugging with integrated analysis features, waveform navigation, and application-specific support in a compact 5.8-inch footprint.
Testwall can supply the used Tektronix MSO4034B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO4034B.
