Tektronix

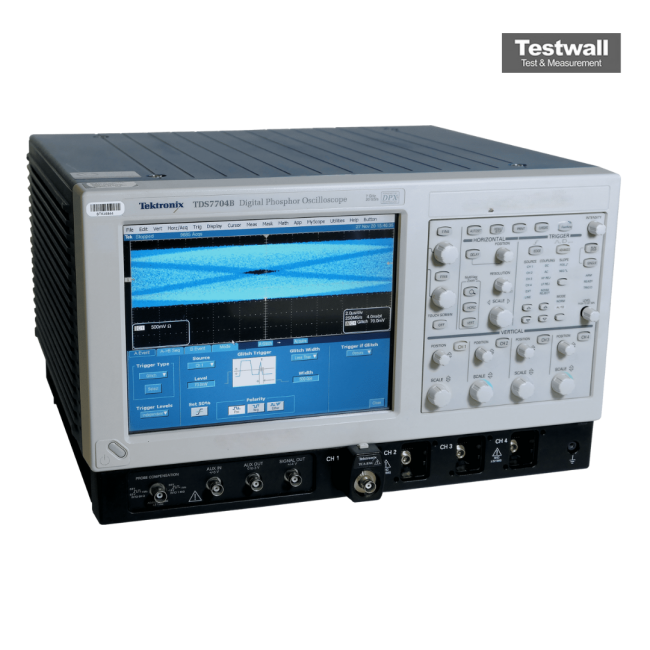

Tektronix TDS7704B
7GHz 4CH 20GSa/s Oscilloscope
7 GHz Bandwidth
20 GS/s on 2 channels, 10 GS/s on 4 channels Sample Rate
4 Number of Channels
Up to 32 M points per channel Record Length
8-bit (up to 11-bit with Hi-Res mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 7 GHz |
| Sample Rate | 20 GS/s on 2 channels, 10 GS/s on 4 channels |
| Number of Channels | 4 |
| Record Length | Up to 32 M points per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 58 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 10.4-inch color LCD touchscreen |
| Operating System | Windows XP Embedded |
| Connectivity | GPIB, Ethernet, USB |
Tektronix TDS7704B Options:
- TDS7704B - 2M - Acquisition Memory: 8 Msamples max, 2 Msamples/ch
- TDS7704B - 3M - Acquisition Memory: 16 Msamples max, 4 Msamples/ch
- TDS7704B - 4M - Acquisition Memory: 32 Msamples max, 8 Msamples/ch
- TDS7704B - 5M - Acquisition Memory: 64 Msamples max, 16 Msamples/ch
- TDS7704B - DVI - TDSDVI DVI compliance test solution
- TDS7704B - DVD - TDSDVD Optical storage analysis
- TDS7704B - ET3 - TDSET3 Ethernet compliance test software
- TDS7704B - JT3 - TDSJIT3 Advanced jitter analysis software
- TDS7704B - J3E - TDSJIT3 Essentials
- TDS7704B - J2 - TDSDDM2 Disk drive analysis software
- TDS7704B - CP2 - TDSCPM2 ANSI/ITU Telecom pulse compliance testing software (requires Option SM)
- TDS7704B - USB - TDSUSBS USB2.0 Compliance test S/W only (requires Option TDSUSBF)
- TDS7704B - SM - Serial communications mask testing
- TDS7704B - ST - Serial pattern trigger
- TDS7704B - PW3 - TDSPWR3 Power measurement and analysis software
- TDS7704B - RTE - Serial Data Compliance and Analysis Software
- TDS7704B - PCE - PCI Express Compliance Module for option RTE (requires Option RTE)
- TDS7704B - IBA - InfiniBand Compliance Module for option RTE (requires Option RTE)
- TDS7704B - A0 - North America power cord
- TDS7704B - A1 - Universal EURO power cord
- TDS7704B - A2 - United Kingdom power cord
- TDS7704B - A3 - Australia power cord
- TDS7704B - A5 - Switzerland power cord
- TDS7704B - A6 - Japan power cord
- TDS7704B - A99 - No power cord or AC adapter
- TDS7704B - A10 - China power cord
- TDS7704B - 1K - K4000 Oscilloscope Cart
- TDS7704B - 1R - Rackmount Kit
- TDS7704B - FHD - Front-panel 40 GB removable hard disk drive, replaces floppy disk drive that goes on the rear panel
- TDS7704B - C3 - Calibration Service 3 Years
- TDS7704B - C5 - Calibration Service 5 Years
- TDS7704B - D1 - Calibration Data Report
- TDS7704B - D3 - Calibration Data Report 3 Years (with Option C3)
- TDS7704B - D5 - Calibration Data Report 5 Years (with Option C5)
- TDS7704B - R3 - Repair Service 3 Years
- TDS7704B - R5 - Repair Service 5 Years
| Model | TDS7704B |
|---|
4 Channel
7GHz Bandwidth
5GS/s Sample Rate in 4 Ch Mode, 10GS/s in 2 Ch Mode, 20GS/s in 1 Ch Mode? Standard Memory: 1Mpts/ch in 4 Ch Mode, 2Mpts/ch in 2 Ch Mode, 4Mpts/ch in 1 Ch Mode
62 ps Rise Time 10% to 90% .
