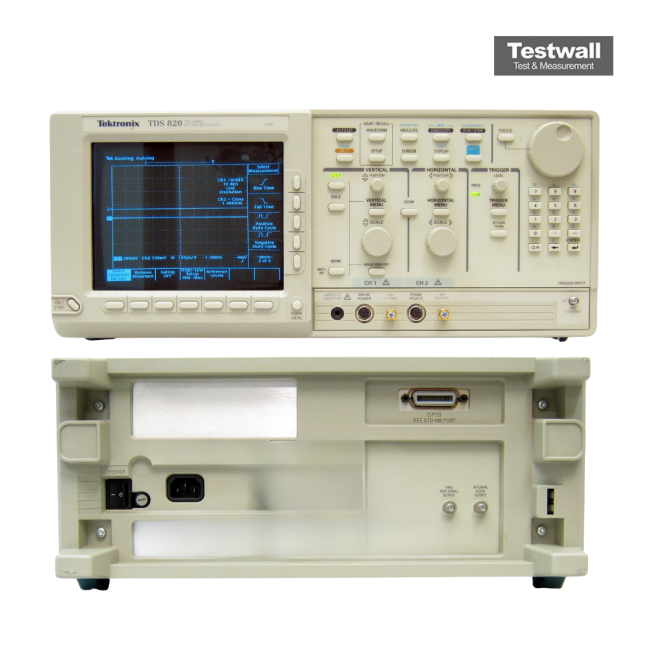

Tektronix TDS820
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Bandwidth | 500 MHz |
| Sample Rate | 2 GS/s (single channel), 1 GS/s (both channels) |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD flat-panel display |
| Connectivity/Interface | GPIB, RS-232, Centronics parallel port |
Tektronix TDS820 Options:
- TDS820 - 1D - 8 GHz bandwidth, 43.8 ps rise time, 1 Vp-p max input, 1 mV/div to 100 mV/div sensitivity
| Model | TDS820 |
|---|
The Tektronix TDS820 offers 6 GHz or 8 GHz bandwidth (Option 1D), with rise times of 58 ps or 44 ps and an ultra-low jitter of just 3 ps RMS. It features a 20 ps/div to 2 ms/div time base, 14-bit resolution, and a record length ranging from 500 to 15,000 points. The deflection range is 2 mV/div to 200 mV/div, or 1 mV/div to 100 mV/div with Option 1D. A 50 Ω input impedance ensures accurate signal acquisition, supported by GPIB, RS-232, and Centronics interfaces.
Ideal for high-speed digital and RF signal analysis, the Tektronix TDS820 ensures precise waveform capture and evaluation, even for sub-nanosecond pulses and jitter-sensitive applications.
Testwall can supply the used Tektronix TDS820, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS820.
