Tektronix
Tektronix TEK-DPG
Deskew Pulse Generator Signal Source
Tektronix TDS Series Oscilloscopes Compatible Instruments
Digital Pattern Generator Plug-in Module Function
16 Digital Output Channels Output Channels
TTL Compatible Logic Levels Output Voltage Levels
Up to 16K Patterns per Channel Pattern Memory Depth
| Attribute | Value |
|---|---|
| Compatible Instruments | Tektronix TDS Series Oscilloscopes |
| Function | Digital Pattern Generator Plug-in Module |
| Output Channels | 16 Digital Output Channels |
| Output Voltage Levels | TTL Compatible Logic Levels |
| Pattern Memory Depth | Up to 16K Patterns per Channel |
| Clock Frequency | Up to 200 MHz Internal Clock Rate |
| Trigger Modes | Internal and External Trigger Supported |
| Interface | Direct Plug-in to Tektronix Oscilloscope Expansion Slot |
| Operating Temperature | 0°C to +50°C |
| Power Supply | Powered via Host Instrument |
Tektronix TEK-DPG Options:
- TEK-DPG - R3 - Repair Service 3 Years
- TEK-DPG - R5 - Repair Service 5 Years
- TEK-DPG - SILV600 - Standard Warranty Extended to 5 Years
- TEK-DPG - R1PW - Repair service coverage 1-year post warranty
- TEK-DPG - R2PW - Repair service coverage 2-year post warranty
- TEK-DPG - R3DW - Repair service coverage 3 years (includes product warranty period). 3-year period starts at time of customer instrument purchase
- TEK-DPG - R5DW - Repair service coverage 5 years (includes product warranty period). 5-year period starts at time of customer instrument purchase
| Model | TEK-DPG |
|---|

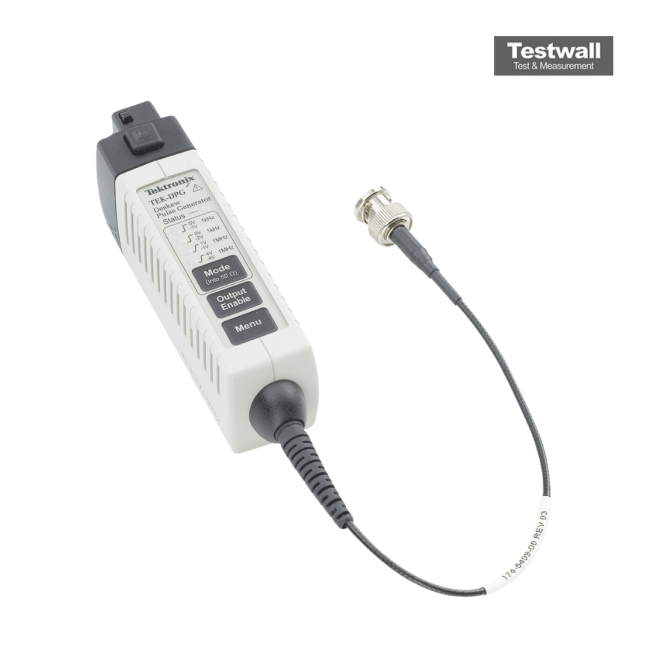

The Tektronix TEK-DPG Deskew Pulse Generator is a plug-on signal source for TekVPI™-enabled oscilloscopes like DPO3000 and DPO/MSO4000 Series. It provides precise signal synchronization for current and voltage probes during power measurement tasks.
With LED status indication, multiple output signals, and oscilloscope-controlled settings, the TEK-DPG ensures accurate deskew and enhanced efficiency in power electronics testing.
Testwall can supply the used Tektronix TEK-DPG, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TEK-DPG.
