Tektronix TDS540
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Sample Rate | 1 GS/s (single channel), 500 MS/s (all channels) |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD, 640 x 480 resolution |
| Connectivity / Storage | GPIB, RS-232, Centronics; floppy disk drive for waveform and setup storage |
| Model | TDS540 |
|---|

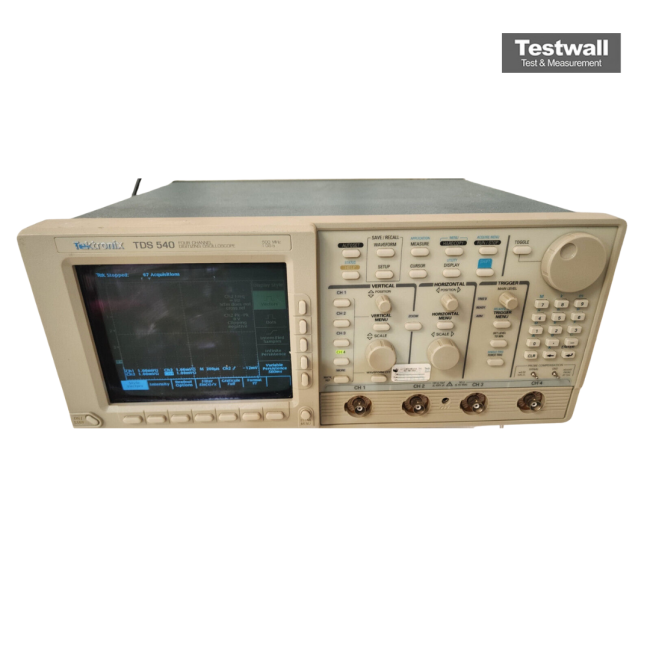

The Tektronix TDS540 4 Channel 500MHz 1GS/S Digitising Scope offers advanced measurement capabilities with four independent channels, a 500MHz bandwidth, and a real-time sampling rate of 1GS/s. Designed for precision, it provides high-resolution waveform acquisition and versatile triggering options for accurate signal analysis. Its digital architecture ensures minimal distortion and fast data processing, making it ideal for demanding electronic testing applications.
This oscilloscope is well-suited for research, development, and troubleshooting tasks, offering comprehensive measurement functions and intuitive controls to enhance workflow efficiency.
Testwall can supply the used Tektronix TDS540 4 Channel 500MHz 1GS/S Digitising Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS540 4 Channel 500MHz 1GS/S Digitising Scope.
