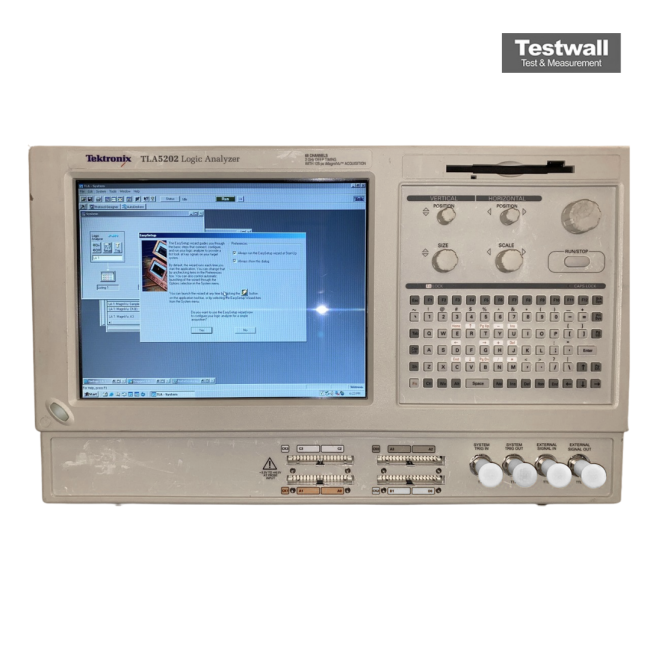

Tektronix TLA5202
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Timing Resolution | 500 ps |
| Maximum State Clock Rate | 200 MHz |
| Memory Depth | Up to 128 Mb per channel |
| Number of Module Slots | 2 Slots |
| Threshold Voltage Range | -2.0 V to +4.0 V |
| Input Impedance | 100 kΩ, 8 pF |
| Maximum Input Voltage | ±15 V (non-destructive) |
| Display | 10.4-inch TFT Color LCD |
| Operating System | Windows XP Embedded |
Tektronix TLA5202 Options:
- TLA5202 - Opt. 1C - Add iView external oscilloscope cable kit (012-1614-02)
- TLA5202 - Opt. 1P - Add full complement of P6418 17-Channel general-purpose probes (each includes two 8-Channel leadsets, one 1-Channel leadset, 20 SMT KlipChip grabber tips) - Qty: 4
- TLA5202 - Opt. 2P - Add full complement of P6434 34-Channel high-density Mictor probes - Qty: 2
- TLA5202 - Opt. 3P - Add full complement of P6417 17-Channel general-purpose probes that allow you to separate the 8-Channel podlet groups into channels (each includes two 8-Channel leadsets, one 1-Channel leadset, 20 SMT KlipChip grabber tips) - Qty: 4
- TLA5202 - Opt. 4P - Add full complement of P6419 17-Channel high-density compression probes - Qty: 4
- TLA5202 - Opt. 7S - Increase to 2 Mb base memory depth per channel
- TLA5202 - Opt. 8S - Increase to 8 Mb base memory depth per channel
- TLA5202 - Opt. C3 - Calibration Service 3 Years
- TLA5202 - Opt. C5 - Calibration Service 5 Years
- TLA5202 - Opt. D1 - Calibration Data Report
- TLA5202 - Opt. D3 - Calibration Data Report 3 Years (with Option C3)
- TLA5202 - Opt. D5 - Calibration Data Report 5 Years (with Option C5)
- TLA5202 - Opt. R3 - Repair Service 3 Years
- TLA5202 - Opt. R5 - Repair Service 5 Years
- TLA5202 - A0 - North America power
- TLA5202 - A1 - Universal EURO power
- TLA5202 - A2 - United Kingdom power
- TLA5202 - A3 - Australia power
- TLA5202 - A4 - 240 V, North America power
- TLA5202 - A5 - Switzerland power
- TLA5202 - A6 - Japan power
- TLA5202 - A10 - China power
- TLA5202 - A99 - No power cord or AC adapter
- TLA5202 - Opt. L0 - English Manuals
- TLA5202 - Opt. L10 - Russian Manuals
- TLA5202 - Opt. L99 - No Manuals
| Model | TLA5202 |
|---|
The Tektronix TLA5202 logic analyzer delivers 500 ps (2 GHz) timing resolution and up to 32 Mb deep memory, enabling precise capture of intermittent events. With 125 ps-resolution MagniVu™ technology, it offers simultaneous state and timing acquisition, revealing complex timing issues. It supports 235 MHz state acquisition for high-speed digital circuit analysis, with glitch and setup/hold violation detection. Channel configurations from 34 to 136 ensure versatile deployment.
Ideal for single-bus timing/state analysis, the TLA5202 features an intuitive Windows-based interface and OpenChoice networking for seamless integration into any design workflow.
Testwall can supply the used Tektronix TLA5202, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA5202.
