Keysight (Agilent)

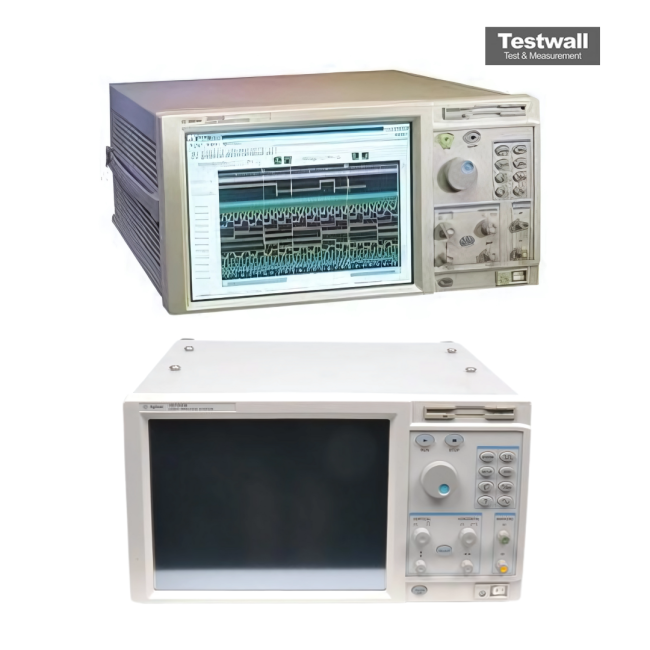

Keysight (Agilent) 16702B
Logic Analyser Mainframe
15-inch color LCD flat panel display Display
Intel Pentium III processor Processor
Windows 2000 Operating System
5 module slots for logic analyzer cards Module Slots
20 GB hard disk drive Storage
€1,500.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Display | 15-inch color LCD flat panel display |
| Processor | Intel Pentium III processor |
| Operating System | Windows 2000 |
| Module Slots | 5 module slots for logic analyzer cards |
| Storage | 20 GB hard disk drive |
| Memory | 256 MB RAM |
| Connectivity | LAN (10/100Base-T Ethernet), USB, parallel, and serial ports |
| Optical Drive | CD-RW drive |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | 425 mm x 265 mm x 490 mm (16.7 in x 10.4 in x 19.3 in) |
| Model | 16702B |
|---|
The Keysight (Agilent) 16702B Logic Analyzer Mainframe offers an integrated, modular platform with a built-in 800 x 600 touchscreen and Windows-based interface for efficient digital system analysis. It supports simultaneous state and timing analysis, oscilloscope functions, pattern generation, and emulation. The system includes five module slots for flexible configuration and one slot for an emulation or multiframe module. Key features include front-panel knobs for real-time control, 18 GB hard drive, 40x CD-ROM, 128 MB RAM, and 10/100Base-T LAN connectivity.
Engineered for developers needing comprehensive debug and validation tools, the 16702B simplifies signal visualization and setup with intuitive function keys and marker control.
Testwall can supply the used Keysight (Agilent) 16702B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16702B.
