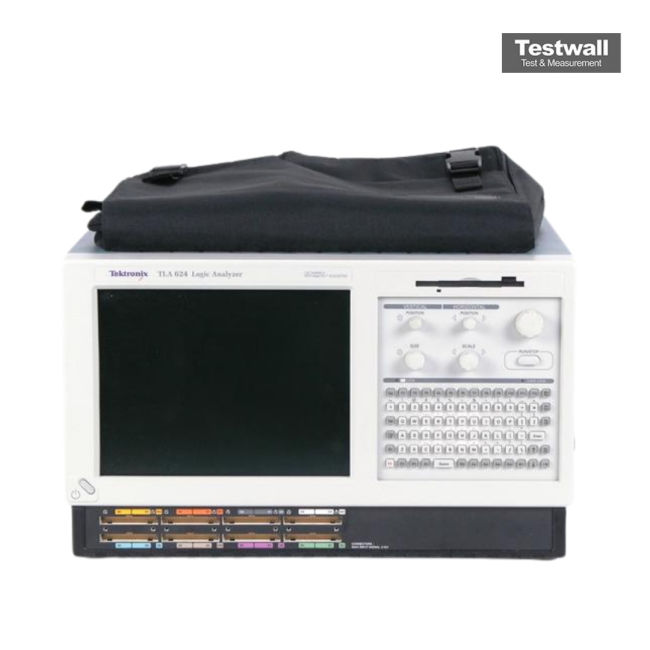

Tektronix TLA624
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Clock Speed | 235 MHz |
| Timing Resolution | 500 ps |
| Memory Depth | 128 Kbits per channel |
| Number of Module Slots | 4 Slots |
| Threshold Voltage Range | -2.0 V to +4.0 V |
| Input Voltage Range | -2.0 V to +7.0 V |
| Operating System | Windows XP |
| Display | 15-inch Color LCD Display |
| Power Requirements | 100-240 VAC, 50/60 Hz |
Tektronix TLA624 Options:
- TLA624 - 1P - Add P6418 17 channel general-purpose probes (includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip grabber tips) - Quantity: 8
- TLA624 - 2P - Add P6434 34 channel high-density probe(s) - Quantity: 4
- TLA624 - 3P - Add P6417 17 channel general-purpose probes (includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip grabber tips) - Quantity: 8
- TLA624 - 6S - Increase to 1 M depth at 200 MHz state
- TLA624 - 1C - Add iView external oscilloscope cable kit (012-1614-00)
- TLA624 - 1J - 512 MB DRAM/30 GB hard disk
- TLA624 - 1K - Add LACART logic analyzer cart
- TLA624 - 1M - Add 17 in. monitor (119-5700-00)
- TLA624 - 2M - Add 21 in. monitor (119-5798-00)
- TLA624 - A1 - Universal Euro 220 VAC; 50 Hz
- TLA624 - A2 - UK 240 VAC; 50 Hz
- TLA624 - A3 - Australian 240 VAC; 50 Hz
- TLA624 - A4 - North American 240 VAC; 60 Hz
- TLA624 - A5 - Switzerland 220 VAC; 50 Hz
- TLA624 - A99 - No Power Cord
- TLA624 - R3 - Extends depot repair warranty service period to three years
- TLA624 - C3 - Three years of Calibration Service (includes initial calibration and two annual calibrations)
- TLA624 - D1 - Add calibration test data report
- TLA624 - D3 - Provides test data for each calibration (must be ordered with Opt. C3)
| Model | TLA624 |
|---|
The Tektronix TLA624 Logic Analyzer offers 136 channels with advanced MagniVu Acquisition Technology, delivering 2 GHz (500 ps) timing resolution and 200 MHz state acquisition. Designed with simultaneous state and high-speed timing analysis, glitch/setup/hold triggering, and 500 MHz deep timing capability, it excels in pinpointing elusive digital faults. Its iView feature enables analog/digital cross-domain analysis with Tektronix TDS oscilloscopes.
Ideal for general-purpose state/timing analysis, the TLA624 supports transitional storage, real-time trace, and source code correlation on an open Windows 2000 platform. It features front-panel and external display support.
Testwall can supply the used Tektronix TLA624, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA624
