Tektronix TLA6404
| Attribute | Value |
|---|---|
| Number of Channels | 136 channels |
| Maximum Sample Rate | 4 GHz (Timing Mode) |
| State Clock Rate | Up to 450 MHz |
| Memory Depth | 128 Mb per channel |
| Threshold Voltage Range | -2.0 V to +4.0 V, programmable in 10 mV increments |
| Input Voltage Range | -2.0 V to +4.0 V |
| Minimum Detectable Pulse Width | 500 ps |
| Time Resolution | 250 ps (Timing Mode) |
| Form Factor | TLA7000 Series Mainframe Compatible Module |
| Probing System | Compatible with P6434, P6430, and P6417 probe systems |
Tektronix TLA6404 Options:
- TLA6404 - 1S - Increase to 4 Mb record length
- TLA6404 - 2S - Increase to 8 Mb record length
- TLA6404 - 3S - Increase to 16 Mb record length
- TLA6404 - 4S - Increase to 32 Mb record length
- TLA6404 - 5S - Increase to 64 Mb record length
- TLA6404 - 1T - Increase state speed to 667 MHz
- TLA6404 - AM - Add full analog mux control
- TLA6404 - 18 - Add touch screen
- TLA6404 - 1C - Add GPIB-iView™ external oscilloscope cable kit
- TLA6404 - 2C - Add USB-iView™ external oscilloscope cable kit
- TLA6404 - PO - Add accessory pouch
- TLA6404 - A0 - North America power plug (115 V, 60 Hz)
- TLA6404 - A1 - Universal Euro power plug (220 V, 50 Hz)
- TLA6404 - A2 - United Kingdom power plug (240 V, 50 Hz)
- TLA6404 - A3 - Australia power plug (240 V, 50 Hz)
- TLA6404 - A4 - North America power plug (240 V, 50 Hz)
- TLA6404 - A5 - Switzerland power plug (220 V, 50 Hz)
- TLA6404 - A6 - Japan power plug (100 V, 50/60 Hz)
- TLA6404 - A10 - China power plug (50 Hz)
- TLA6404 - A11 - India power plug (50 Hz)
- TLA6404 - A12 - Brazil power plug (60 Hz)
- TLA6404 - A99 - No power cord
- TLA6404 - L0 - English manual
- TLA6404 - L5 - Japanese manual
- TLA6404 - L10 - Russian manual
- TLA6404 - L99 - No manual
- TLA6404 - C3 - Calibration Service 3 Years
- TLA6404 - C5 - Calibration Service 5 Years
- TLA6404 - D1 - Calibration Data Report
- TLA6404 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TLA6404 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TLA6404 - R3 - Repair Service 3 Years (including warranty)
- TLA6404 - R3DW - Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- TLA6404 - R5 - Repair Service 5 Years (including warranty)
- TLA6404 - R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | TLA6404 |
|---|

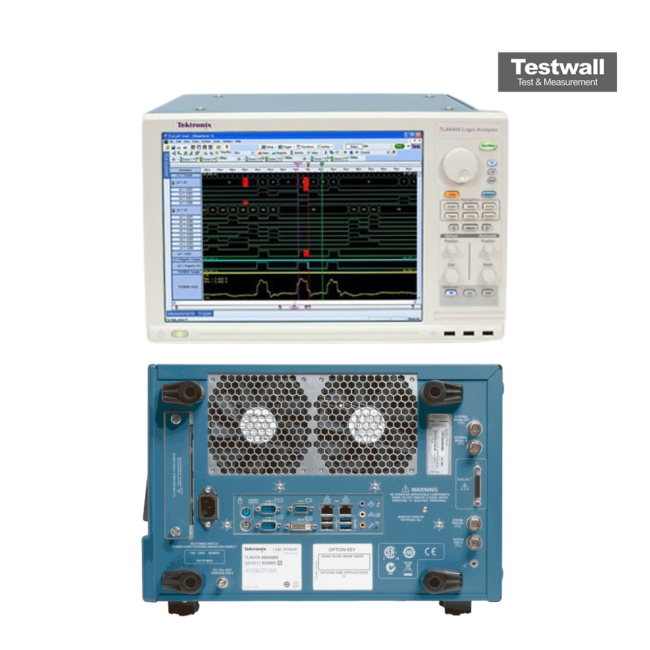

The Tektronix TLA6404 Logic Analyzer delivers high-resolution signal analysis with 40 ps MagniVu™ Acquisition, supporting state speeds up to 667 MHz and data rates up to 1333 Mb/s. Featuring a 15-inch display with optional touchscreen, it enables quick navigation and deep system insights. Available in 34/68/102/136 channel options and up to 64 Mb record length, it provides flexible performance tailored to budget and need.
With drag-and-drop triggering and measurement tools, the TLA6404 simplifies digital system validation and troubleshooting, enhancing repeatability and reducing measurement errors.
Testwall can supply the used Tektronix TLA6404, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA6404.
