Tektronix TLA7016
| Attribute | Value |
|---|---|
| Number of Slots | 6 |
| Maximum Number of Channels | Up to 408 channels (depending on installed modules) |
| Maximum State Clock Rate | Up to 2 GHz (with compatible modules) |
| Maximum Timing Resolution | Up to 125 ps (with compatible modules) |
| Memory Depth | Up to 128 Mb per channel (module dependent) |
| Mainframe Form Factor | Portable/Benchtop chassis |
| Display | Integrated 15-inch color display |
| Operating System | Windows XP Embedded |
| Connectivity | Ethernet, USB, GPIB |
| Power Requirements | 100–240 V AC, 50/60 Hz |
| Model | TLA7016 |
|---|

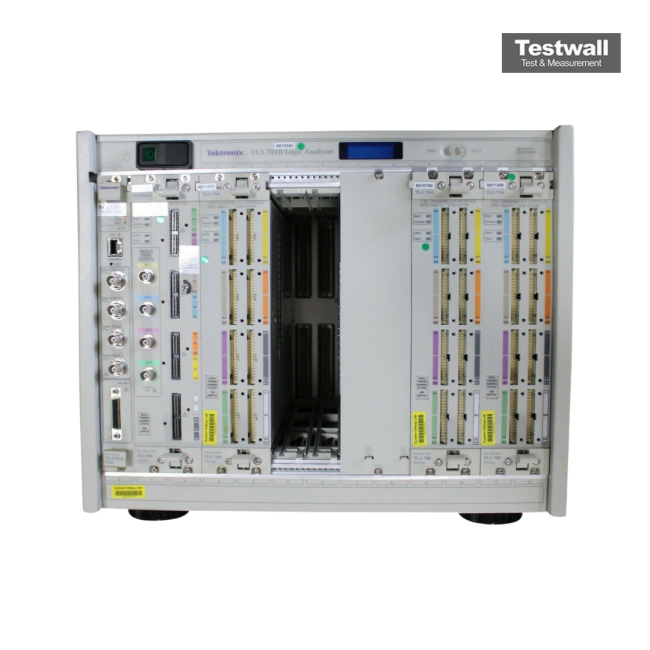

The Tektronix TLA7016 Benchtop Mainframe supports up to 6,528 logic analyzer channels and 48 independent buses through 6 modular slots, offering exceptional expandability and measurement capabilities. Built on a Microsoft Windows XP Professional PC platform, it provides seamless integration with TLA modules and remote access via .NET and COM/DCOM technologies. It also supports iView™ with up to 15 GHz, 40 GS/s analog acquisition using Tektronix TDS oscilloscopes.
It enables precise digital analysis, waveform viewing, and performance histograms, suitable for high channel count and complex bus applications. Compatible with both logic analyzers and pattern generators.
Testwall can supply the used Tektronix TLA7016, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7016.
