Tektronix TLA720
| Attribute | Value |
|---|---|
| Number of Channels | 136 channels |
| Maximum Timing Resolution | 500 ps |
| Maximum State Clock Rate | 200 MHz |
| Memory Depth | Up to 128 Kbits per channel |
| Input Threshold Range | -2.0 V to +4.0 V, programmable in 50 mV increments |
| Minimum Input Signal Voltage Swing | 500 mV |
| Maximum Input Voltage | ±15 V (non-destructive) |
| Trigger System | Multi-level hardware triggering with up to 16 levels of sequencing |
| Form Factor | Modular mainframe-based system compatible with TLA700 series mainframes |
| Probing System | Compatible with Tektronix P6417 and P6418 logic analyzer probes |
Tektronix TLA720 Options:
- TLA720 - Opt. 1S - 128 MB DRAM/30 GB replaceable hard disk (TLA714 only)
- TLA720 - Opt. 1A - Add LAN PC Card (119-6072-00)
- TLA720 - Opt. 1K - Add LACART logic analyzer cart
- TLA720 - Opt. 1M - Add 17 in. monitor (119-5700-00)
- TLA720 - Opt. 2M - Add 21 in. monitor (119-5798-00)
- TLA720 - Opt. A1 - Universal Euro 220 VAC; 50 Hz
- TLA720 - Opt. A2 - UK 240 VAC; 50 Hz
- TLA720 - Opt. A3 - Australian 240 VAC; 50 Hz
- TLA720 - Opt. A4 - North American 240 VAC; 60 Hz
- TLA720 - Opt. A5 - Switzerland 220 VAC; 50 Hz
- TLA720 - Opt. A99 - No Power Cord
- TLA720 - Opt. IN - Product installation service (on-site configuration and user familiarization; excluding network integration)
- TLA720 - Opt. R3 - Extends depot repair warranty service period to three years
- TLA720 - Opt. S1 - Uplifts standard one-year warranty service of mainframe and installed modules to on-site service
- TLA720 - Opt. S3 - Uplifts Opt. C3 and/or R3 of mainframe and installed modules to on-site service (must be ordered with Opt. C3 and/or R3)
- TLA720 - Opt. C3 - Three years of Calibration Service (includes initial calibration and two annual calibrations)
- TLA720 - Opt. D1 - Add calibration test data report
- TLA720 - Opt. D3 - Provides test data for each calibration (must be ordered with Opt. C3)
| Model | TLA720 |
|---|

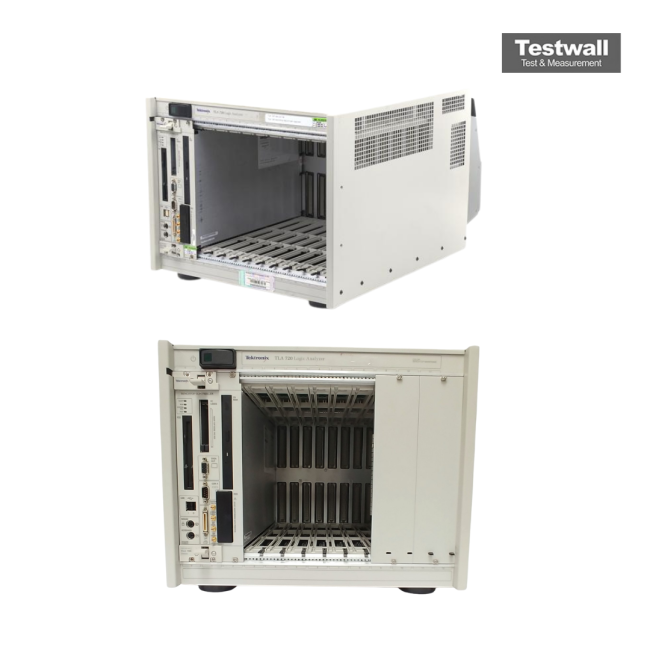

The Tektronix TLA720 is a benchtop logic analyzer mainframe with 680 state/timing channels, supporting conventional timing from 4 ns to 50 ns and state/timing speed from 100 MHz to 2 GHz. Memory depth ranges from 64 K to 16 M, and it features an 11-slot color mainframe requiring an SVGA monitor, PS/2 peripherals, and runs on a Windows 98-based interface.
Ideal for complex debugging, it requires at least one compatible acquisition or scope module from the TLA7L_, TLA7M_, TLA7N_, TLA7P_, TLA7D_, or TLA7E_ families to function properly.
Testwall can supply the used Tektronix TLA720, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA720.
