Keysight (Agilent) 1651A
32 Channel Logic Analyser
43 Channels (35 data channels + 8 clock/qualifier channels) Number of Channels
35 MHz Maximum State Speed
100 MHz Maximum Timing Speed
1024 bits (1K) per channel Memory Depth per Channel
5 ns Minimum Detectable Pulse Width
| Attribute | Value |
|---|---|
| Number of Channels | 43 Channels (35 data channels + 8 clock/qualifier channels) |
| Maximum State Speed | 35 MHz |
| Maximum Timing Speed | 100 MHz |
| Memory Depth per Channel | 1024 bits (1K) per channel |
| Minimum Detectable Pulse Width | 5 ns |
| Threshold Voltage Range | -6.0 V to +6.0 V, programmable in 0.1 V increments |
| Input Impedance | 100 kΩ, 8 pF |
| Display | Built-in CRT display with state listing, timing waveforms, and chart formats |
| Trigger Capability | 12-bit sequential trigger sequencer with up to 4 levels of trigger sequence |
| Interface / Connectivity | HP-IB (GPIB) interface for remote programmability and control |
| Model | 1651A |
|---|

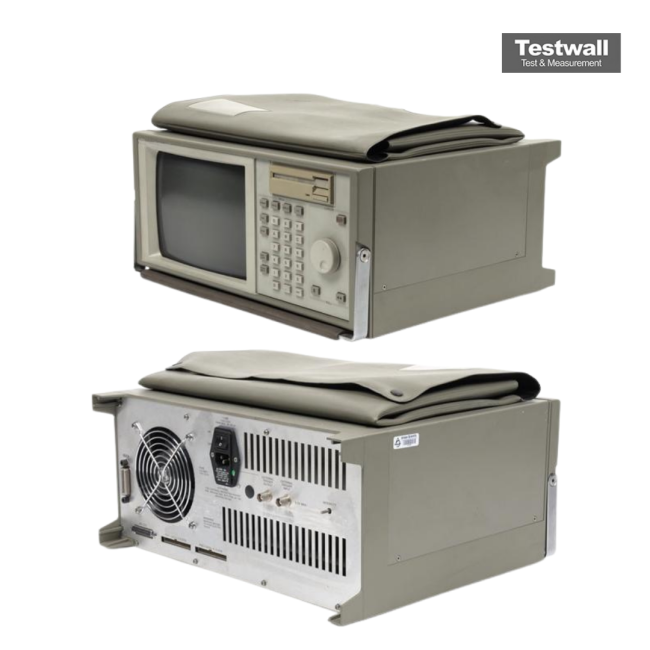

The Keysight (Agilent) 1651A is a 32-channel logic analyzer capable of 100MHz timing and 25MHz state analysis, equipped with autoscale setup and microprocessor support for 8-, 16-, and 32-bit systems. It incorporates transitional timing for extended acquisition time.
This compact and portable analyzer features a large display and is designed for efficient support of most microprocessor environments in development and troubleshooting.
Testwall can supply the used Keysight (Agilent) 1651A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 1651A.
