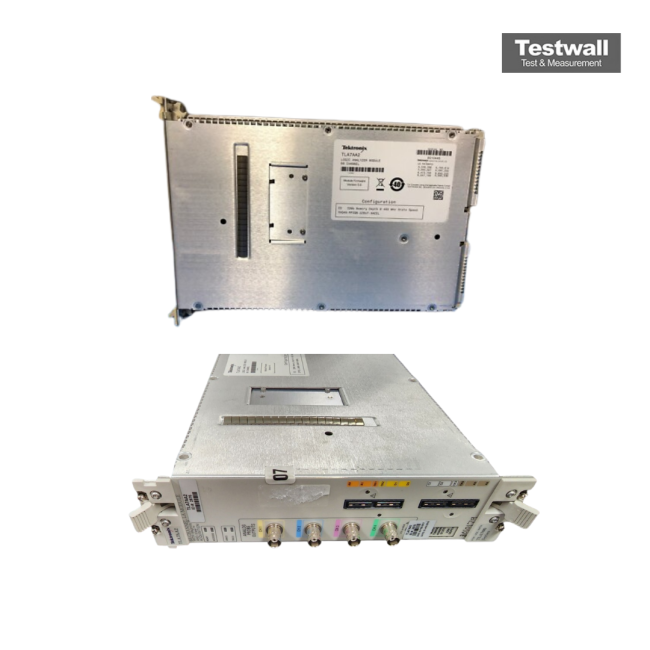

Tektronix TLA7AA2
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Maximum Sample Rate | 4 GHz Timing, 800 MHz State |
| Memory Depth | 128 Mb per Channel |
| Threshold Accuracy | ±50 mV |
| Input Voltage Range | -2 V to +7 V |
| Minimum Detectable Pulse Width | 250 ps |
| Module Compatibility | Tektronix TLA7000 Series Mainframe |
| Input Impedance | 100 kΩ, 8 pF |
| Threshold Range | -2 V to +6 V, Programmable in 10 mV Steps |
| Form Factor | Single-Wide Module |
Tektronix TLA7AA2 Options:
- TLA7AA2 - Opt 1S - Increase to 512 Kb Depth at 120 MHz State
- TLA7AA2 - Opt 2S - Increase to 2 Mb Depth at 120 MHz State
- TLA7AA2 - Opt 3S - Increase to 8 Mb Depth at 120 MHz State
- TLA7AA2 - Opt 4S - Increase to 32 Mb Depth at 120 MHz State
- TLA7AA2 - Opt 5S - Increase to 128 Kb Depth at 235 MHz State
- TLA7AA2 - Opt 6S - Increase to 512 Kb Depth at 235 MHz State
- TLA7AA2 - Opt 7S - Increase to 2 Mb Depth at 235 MHz State
- TLA7AA2 - Opt 8S - Increase to 8 Mb Depth at 235 MHz State
- TLA7AA2 - Opt 9S - Increase to 32 Mb Depth at 235 MHz State
- TLA7AA2 - Opt AS - Increase to 128 Kb Depth at 450 MHz State
- TLA7AA2 - Opt BS - Increase to 512 Kb Depth at 450 MHz State
- TLA7AA2 - Opt CS - Increase to 2 Mb Depth at 450 MHz State
- TLA7AA2 - Opt DS - Increase to 8 Mb Depth at 450 MHz State
- TLA7AA2 - Opt ES - Increase to 32 Mb Depth at 450 MHz State
- TLA7AA2 - Opt C3 - Calibration Service 3 Years
- TLA7AA2 - Opt C5 - Calibration Service 5 Years
- TLA7AA2 - Opt D1 - Calibration Data Report
- TLA7AA2 - Opt D3 - Calibration Data Report 3 Years (with Opt. C3)
- TLA7AA2 - Opt D5 - Calibration Data Report 5 Years (with Opt. C5)
- TLA7AA2 - Opt R3 - Repair Service 3 Years
- TLA7AA2 - Opt R5 - Repair Service 5 Years
- TLA7AA2 - Opt IN - Product Installation Service
| Model | TLA7AA2 |
|---|
The Tektronix TLA7AA2 is a 68-channel logic analyzer module offering 500 ps (2 GHz) timing, 32 Mb memory, and state acquisition up to 800 MHz. Integrated MagniVu™ technology delivers up to 125 ps timing resolution across all channels, enabling glitch, setup/hold triggering, and transitional storage. High-speed timing, state, and analog analysis are performed simultaneously using the same probe with ultra-low capacitive loading (0.5 pF).
Ideal for debugging hardware, verifying processors/buses, and embedded software, it features source synchronous support and real-time tracing. The compression probe system ensures minimal intrusion on circuits.
Testwall can supply the used Tektronix TLA7AA2, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7AA2.
