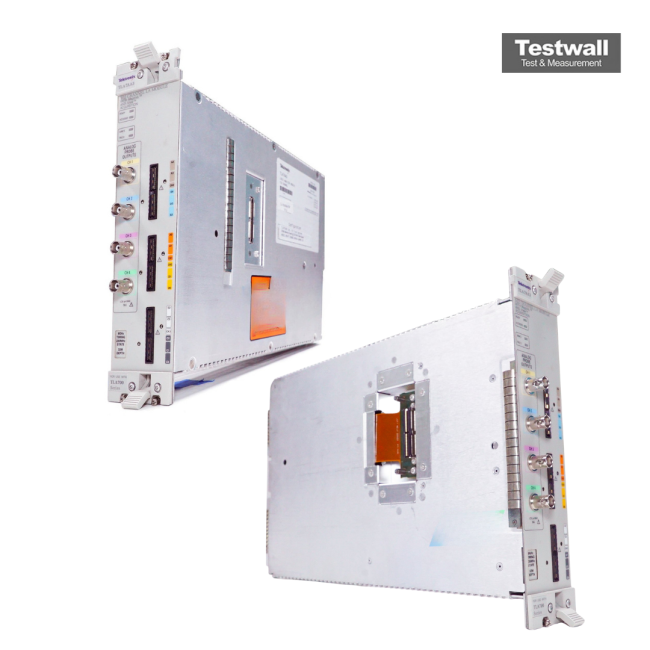

Tektronix TLA7AA3
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Maximum Clock Speed | 450 MHz |
| Timing Resolution | 2.2 ns |
| Memory Depth | 128 Kb per channel |
| Threshold Range | -2.0 V to +4.0 V |
| Threshold Accuracy | ±50 mV |
| Input Impedance | 100 kΩ ± 1% || 5 pF |
| Maximum Input Voltage | ±15 V (non-destructive) |
| Module Type | Logic Analyzer Module for TLA7000 Series Mainframe |
| Operating Temperature | 0°C to +50°C |
Tektronix TLA7AA3 Options:
- TLA7AA3 - 1S - Increase to 512 Kb Depth at 120 MHz State
- TLA7AA3 - 2S - Increase to 2 Mb Depth at 120 MHz State
- TLA7AA3 - 3S - Increase to 8 Mb Depth at 120 MHz State
- TLA7AA3 - 4S - Increase to 32 Mb Depth at 120 MHz State
- TLA7AA3 - 5S - Increase to 128 Kb Depth at 235 MHz State
- TLA7AA3 - 6S - Increase to 512 Kb Depth at 235 MHz State
- TLA7AA3 - 7S - Increase to 2 Mb Depth at 235 MHz State
- TLA7AA3 - 8S - Increase to 8 Mb Depth at 235 MHz State
- TLA7AA3 - 9S - Increase to 32 Mb Depth at 235 MHz State
- TLA7AA3 - AS - Increase to 128 Kb Depth at 450 MHz State
- TLA7AA3 - BS - Increase to 512 Kb Depth at 450 MHz State
- TLA7AA3 - CS - Increase to 2 Mb Depth at 450 MHz State
- TLA7AA3 - DS - Increase to 8 Mb Depth at 450 MHz State
- TLA7AA3 - ES - Increase to 32 Mb Depth at 450 MHz State
- TLA7AA3 - C3 - Calibration Service 3 Years
- TLA7AA3 - C5 - Calibration Service 5 Years
- TLA7AA3 - D1 - Calibration Data Report
- TLA7AA3 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TLA7AA3 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TLA7AA3 - R3 - Repair Service 3 Years
- TLA7AA3 - R5 - Repair Service 5 Years
- TLA7AA3 - IN - Product Installation Service
| Model | TLA7AA3 |
|---|
The Tektronix TLA7AA3 is a 102-channel logic analyzer module offering 8 GHz MagniVu™ timing, 120 MHz state analysis, and 128 Kb memory depth. It supports extensions to 32 Mb depth and 450 MHz state, ideal for high-performance digital systems diagnostics. It integrates glitch detection, setup/hold triggering, and real-time timestamping with deep memory and compression probing for minimal circuit intrusion.
Designed for hardware debugging, embedded software integration, and bus validation, it supports synchronous digital circuit analysis with simultaneous state, timing, and analog captures through a single probe.
Testwall can supply the used Tektronix TLA7AA3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7AA3.
