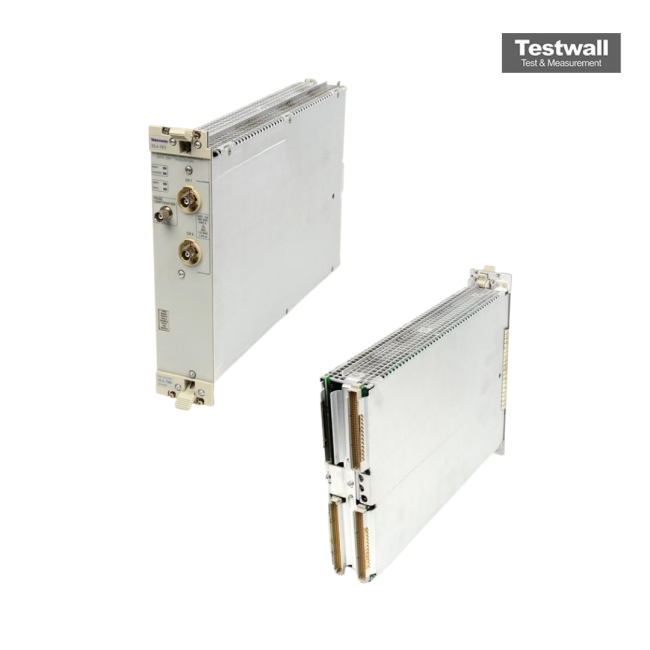

Tektronix TLA7E1
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Timing Resolution | 500 ps |
| Maximum State Clock Rate | 235 MHz |
| Memory Depth | Up to 128 Mb per channel |
| Input Voltage Range | -2.0 V to +7.0 V |
| Threshold Accuracy | ±50 mV |
| Module Compatibility | Tektronix TLA7000 Series Mainframe |
| Input Impedance | 100 kΩ ± 2% in parallel with 8 pF |
| Operating Temperature | 0°C to +50°C |
| Form Factor | Single-slot module |
| Model | TLA7E1 |
|---|
The Tektronix TLA7E1 is a logic analyzer module with 1 GHz bandwidth and dual-channel 5 GSa/s sampling, delivering advanced performance for digital system verification and debugging. It features a 15000 pt/sec record length, input impedance of 1 MOhm or 50 Ohm, and input coupling options of AC, DC, and GND.
Engineered for embedded developers and integrators, the TLA7E1 supports deep acquisition, real-time software execution tracing, and digital stimulus generation to facilitate pinpointing complex system issues.
Testwall can supply the used Tektronix TLA7E1, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7E1.
