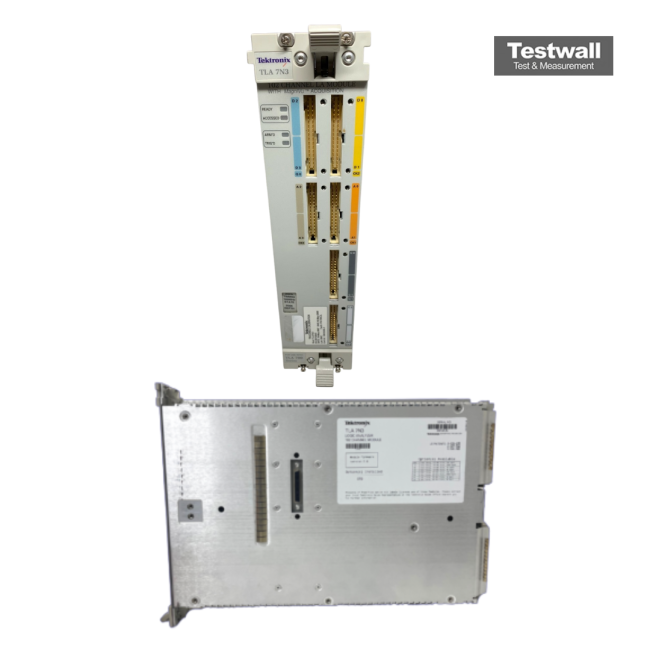

Tektronix TLA7N3
136 Channels Number of Channels
235 MHz Maximum Clock Speed
500 ps Timing Resolution
128 Kb per channel Memory Depth
-2.0 V to +4.0 V Threshold Voltage Range
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Clock Speed | 235 MHz |
| Timing Resolution | 500 ps |
| Memory Depth | 128 Kb per channel |
| Threshold Voltage Range | -2.0 V to +4.0 V |
| Input Voltage Range | -2.0 V to +4.0 V |
| Minimum Detectable Pulse Width | 2.1 ns |
| Module Type | Logic Analyzer Module |
| Compatible Mainframe | TLA7000 Series |
| Input Impedance | 100 kΩ, 8 pF |
Tektronix TLA7N3 Options:
- TLA7N3 - 1P - Add P6418 17 channel general-purpose probes (each includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip™ grabber tips)
- TLA7N3 - 2P - Add P6434 34 channel high-density probe(s)
- TLA7N3 - 3P - Add P6417 17 channel general-purpose probes (each includes two 8 channel leadsets, one 1 channel leadset, 20 SMT KlipChip grabber tips)
- TLA7N3 - 1S - Increase to 256 K depth @ 100 MHz state
- TLA7N3 - 2S - Increase to 1 M depth @ 100 MHz state
- TLA7N3 - 3S - Increase to 4 M depth @ 100 MHz state
- TLA7N3 - 4S - Increase to 64 K depth @ 200 MHz state
- TLA7N3 - 5S - Increase to 256 K depth @ 200 MHz state
- TLA7N3 - 6S - Increase to 1 M depth @ 200 MHz state
- TLA7N3 - 7S - Increase to 4 M depth @ 200 MHz state
- TLA7N3 - A1 - Universal Euro 220 VAC; 50 Hz
- TLA7N3 - A2 - UK 240 VAC; 50 Hz
- TLA7N3 - A3 - Australian 240 VAC; 50 Hz
- TLA7N3 - A4 - North American 240 VAC; 60 Hz
- TLA7N3 - A5 - Switzerland 220 VAC; 50 Hz
- TLA7N3 - A99 - No Power Cord
- TLA7N3 - IN - Product installation service (on-site configuration and user familiarization; excluding network integration)
- TLA7N3 - R3 - Extends depot repair warranty service period to three years
- TLA7N3 - S1 - Uplifts standard one-year warranty service of mainframe and installed modules to on-site service
- TLA7N3 - S3 - Uplifts Opt. C3 and/or R3 of mainframe and installed modules to on-site service (must be ordered with Opt. C3 and/or R3)
- TLA7N3 - C3 - Three years of Calibration Service (includes initial calibration and two annual calibrations)
- TLA7N3 - D1 - Add calibration test data report
- TLA7N3 - D3 - Provides test data for each calibration (must be ordered with Opt. C3)
| Model | TLA7N3 |
|---|
The Tektronix TLA7N3 Logic Analyzer Module offers 102 channels, 64K memory per channel, and 100 MHz state acquisition with 250 MHz timing. It utilizes MagniVu™ technology for 500 ps resolution and supports advanced buses with simultaneous state/timing analysis.
Designed for hardware debugging and system verification, it features 400 MHz data rates, remote COM/DCOM control, and universal source code correlation with Microsoft Windows 98 OS.
Testwall can supply the used Tektronix TLA7N3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7N3.
