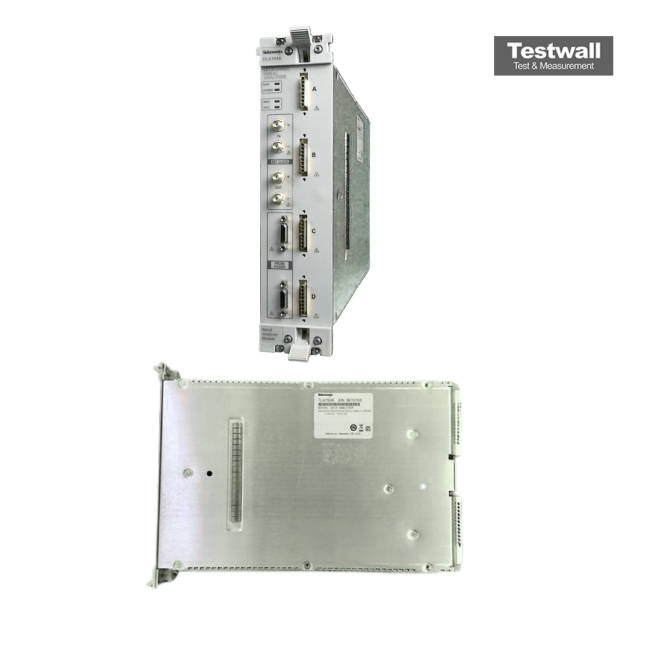

Tektronix TLA7S16
| Attribute | Value |
|---|---|
| Number of Channels | 16 |
| Maximum Sample Rate | 4 GHz Timing, 800 MHz State |
| Memory Depth | 128 Mb per channel |
| Threshold Accuracy | ±50 mV |
| Input Voltage Range | -2 V to +7 V |
| Minimum Detectable Pulse Width | 250 ps |
| Input Impedance | 100 kΩ, 8 pF |
| Maximum Input Voltage | ±15 V (non-destructive) |
| Compatible Platform | Tektronix TLA7000 Series Logic Analyzer Mainframe |
| Module Form Factor | Single-slot TLA7000 Series module |
| Model | TLA7S16 |
|---|
The Tektronix TLA7S16 Serial Analyzer Module supports 8/16 channels with a 32M 8b/10b symbol memory depth per channel and acquisition speeds up to 5 Gb/s. It offers dynamic tracking of link width and data rate changes, frequency margining, and real-time protocol decoding across physical, data link, and transaction layers. The module integrates seamlessly with TLA7012 and TLA7016 mainframes, featuring low-intrusion probing and advanced triggering capabilities for complete PCI Express 1.0/2.0 validation.
Ideal for hardware engineers and embedded developers, the TLA7S16 offers complete L0s and L1 power management analysis, internal/external clocking, and sync to L0s within 12 FTS packets. Its protocol decode tools and waveform views simplify complex debugging tasks.
Testwall can supply the used Tektronix TLA7S16, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7S16.
