Tektronix TLP058
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 8 Channels |
| Logic Threshold Range | -2V to +5V |
| Maximum Input Voltage | ±15V (non-destructive), ±30V (absolute maximum) |
| Input Capacitance | 1.5 pF |
| Input Resistance | 100 kΩ |
| Minimum Detectable Pulse Width | 1 ns |
| Cable Length | 152.4 mm (6 in) |
| Compatible Instruments | Tektronix MSO/DPO5000, MSO/DPO7000, MSO/DPO70000 Series |
| Connector Type | Mictor Connector (38-pin) |
| Model | TLP058 |
|---|

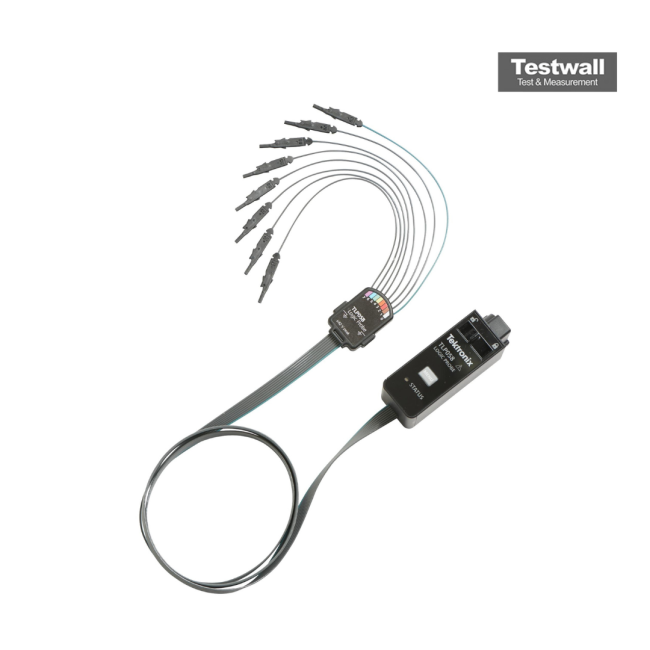

The Tektronix TLP058 FlexChannel® logic probe offers 8 digital input channels with high fidelity, compatible with 5 and 6 Series MSOs including MSO54, MSO56, MSO58, and MSO64. It supports 100kΩ ±1% input resistance, 3pF input capacitance, ±40V threshold, and 6.25GS/s sample rate, ideal for high-speed digital signal testing.
Perfect for connecting to digital buses and signals on DUTs, the TLP058 is optimized for 1ns minimum pulse width detection and operates reliably across a 0°C to +50°C temperature range.
Testwall can supply the used Tektronix TLP058, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLP058.
