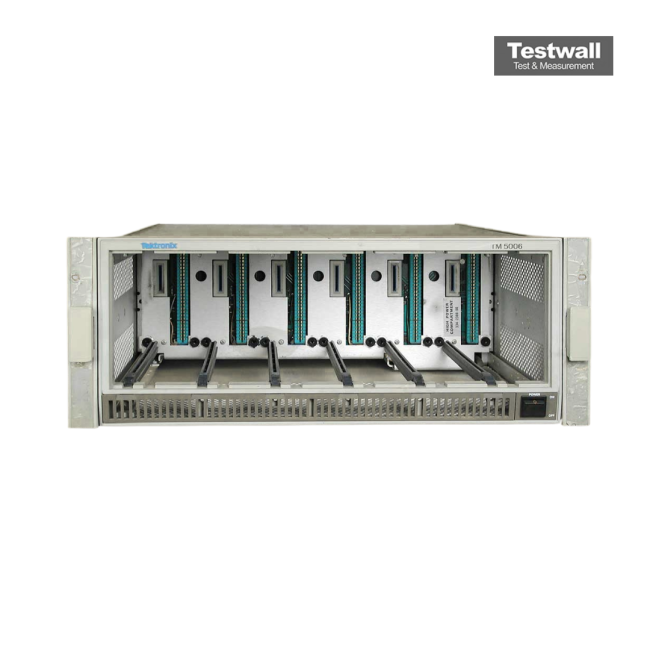

Tektronix TM5006
| Attribute | Value |
|---|---|
| Number of Slots | 6 |
| Power Supply Output | ±15V, +5V, -5.2V, +55V, -55V |
| Total Power Capacity | 150W |
| Compatible Plugin Modules | TM500 and TM5000 series plugin instruments |
| AC Input Voltage | 115V / 230V AC, selectable |
| AC Input Frequency | 48–66 Hz |
| Cooling Method | Forced air cooling (internal fan) |
| Form Factor | Benchtop mainframe |
| Dimensions (H x W x D) | Approximately 222 mm x 483 mm x 508 mm (8.75 in x 19 in x 20 in) |
| Weight | Approximately 15.9 kg (35 lbs) |
Tektronix TM5006 Options:
- TM5006 - 02 - Rear Interface
- TM5006 - 10 - Rackmount (includes slide assembly and handles, plus a higher powered fan)
- TM5006 - 12 - Combined (Option 02 and Option 10)
| Model | TM5006 |
|---|
The Tektronix TM5006 is a power module mainframe capable of housing up to six single-width TM500 or TM5000 series plug-in modules. It supports a wide range of AC inputs (100 to 240 VAC, 48–66 Hz), offers IEEE-488 (GPIB) interface for programmability, and incorporates forced air cooling for thermal stability. Dimensions are 194 mm x 445 mm x 488 mm, with a weight of 32 lb.
Perfect for laboratory or test environments, the TM5006 enhances productivity with plug-in compatibility and robust design, supporting both TM500 and TM5000 series modules, including IEEE-488 programmable units.
Testwall can supply the used Tektronix TM5006, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TM5006.
