Tektronix CSA8000B
| Attribute | Value |
|---|---|
| Bandwidth | Up to 20 GHz (with appropriate sampling modules installed) |
| Rise Time | 17.5 ps (with 20 GHz bandwidth modules) |
| Timebase Range | 100 ps/div to 1 ks/div |
| Vertical Resolution | 12-bit ADC resolution |
| Number of Input Channels | Up to 4 channels (with dual-channel sampling modules) |
| Sampling Rate | Equivalent-time sampling up to 1 Tsa/s (1 x 10^12 samples per second) |
| Display | 10.4-inch color LCD, 1024 x 768 resolution |
| Operating System | Windows 2000 Professional embedded platform |
| Connectivity | GPIB, Ethernet (10/100Base-T), USB ports for peripheral connectivity |
| Trigger Sensitivity | Internal clock recovery and external trigger inputs supported; trigger jitter less than 1 ps RMS |
Tektronix CSA8000B Options:
- CSA8000B - Opt. C3 - Three years of Calibration Service
- CSA8000B - Opt. D1 - Calibration data report
- CSA8000B - Opt. D3 - Three years of Calibration data reports
- CSA8000B - Opt. GT - Gated Trigger
- CSA8000B - Opt. R3 - Extended repair warranty to three years
- CSA8000B - Opt. 1K - Cart
- CSA8000B - Opt. 1R - Rackmount kit (includes: hardware, tooling and instructions for converting bench model to rackmount configuration)
- CSA8000B - Opt. A0 - North America power
- CSA8000B - Opt. A1 - Universal EURO power
- CSA8000B - Opt. A2 - United Kingdom power
- CSA8000B - Opt. A3 - Australia power
- CSA8000B - Opt. A4 - 240 V, North America power
- CSA8000B - Opt. A5 - Switzerland power
- CSA8000B - Opt. A99 - No power cord or AC adapter
- CSA8000B - Opt. AC - China power
| Model | CSA8000B |
|---|

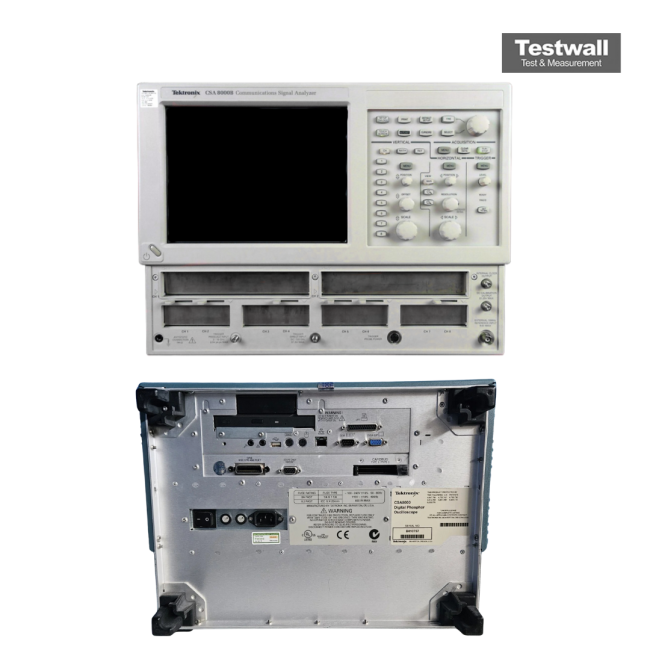

The Tektronix CSA8000B Communications Signal Analyzer is engineered for high-speed telecom/datacom testing, supporting RZ and NRZ formats. With jitter analysis, extinction ratio, Q-factor, and up to 70+ GHz bandwidth, it delivers unparalleled performance through its modular plug-ins for optical and electrical testing.
Ideal for SDH/SONET, Ethernet and Fibre Channel systems, the CSA8000B integrates optical to electrical converters, data rate filters, and low-noise samplers, offering versatile and accurate testing environments.
Testwall can supply the used Tektronix CSA8000B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CSA8000B.
