Tektronix TR210
| Attribute | Value |
|---|---|
| Measurement Range | 0 to 999.9 µH / mH / H (inductance), 0 to 9999 µF / mF (capacitance), 0 to 99.99 MΩ (resistance) |
| Measurement Functions | Inductance (L), Capacitance (C), Resistance (R) |
| Basic Accuracy | ±0.5% of reading |
| Test Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz (selectable) |
| Display | 4-digit LCD display with annunciators |
| Power Supply | 9V battery (NEDA 1604 or equivalent) or AC adapter |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Dimensions | 195 mm x 92 mm x 46 mm (7.7 in x 3.6 in x 1.8 in) |
| Weight | Approximately 400 g (14 oz) including battery |
| Model | TR210 |
|---|

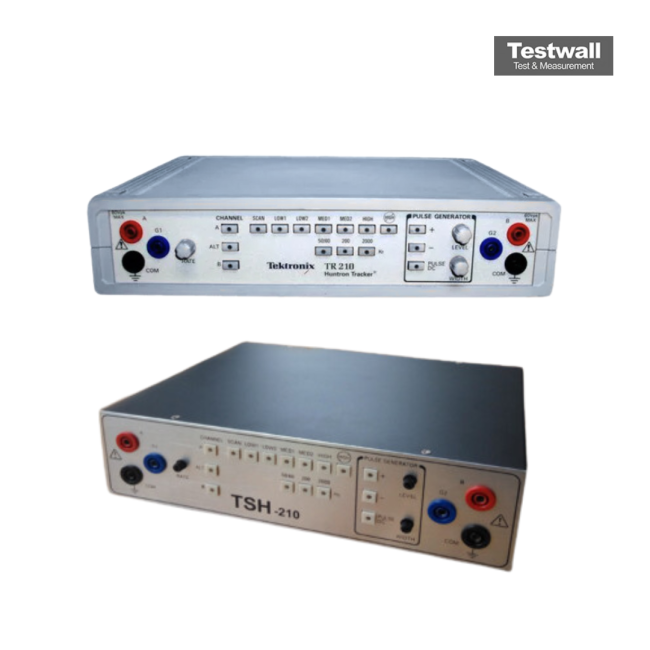

The Tektronix TR210 Huntron Tracker enhances the capabilities of the TDS200-Series oscilloscope by providing unique current-voltage analog signatures for advanced in-circuit and component-level troubleshooting. It operates with a built-in pulse generator and applies current-limited AC signals to analyze active and passive components.
Ideal for circuit boards and PLCs, it enables fault isolation without powering the circuit, identifies marginal and failed components, and simplifies diagnosis of gate-fired devices and analog differences across channels.
Testwall can supply the used Tektronix TR210, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TR210.
