Tektronix TSG200
| Attribute | Value |
|---|---|
| Output Frequency Range | 1 Hz to 6 MHz |
| Video Standards Supported | NTSC, PAL |
| Output Amplitude | 1 V p-p into 75 Ω |
| Output Impedance | 75 Ω |
| Sync Signal | Composite sync, H and V sync outputs |
| Color Subcarrier Frequency (NTSC) | 3.579545 MHz |
| Color Subcarrier Frequency (PAL) | 4.43361875 MHz |
| Power Requirements | 90–250 VAC, 45–66 Hz |
| Operating Temperature Range | 0°C to +50°C |
| Dimensions (H x W x D) | 88.9 mm x 212.7 mm x 304.8 mm (3.5 in x 8.37 in x 12 in) |
| Model | TSG200 |
|---|

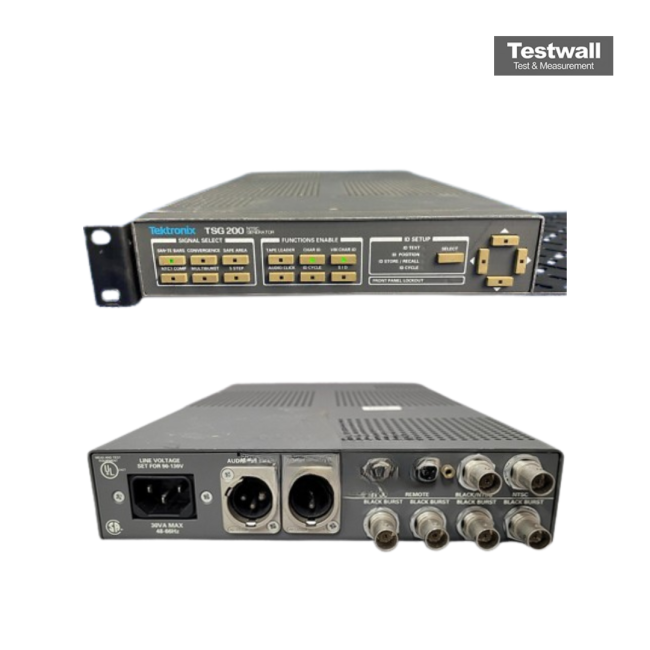

The Tektronix TSG200 NTSC Signal Generator delivers six 10-bit precision NTSC test signals ideal for studio production and first-line maintenance. Its high-quality outputs include SMPTE color bars, convergence patterns, NTC 7 composite, multiburst, 5-step staircase, and black burst signals, offering versatile video signal diagnostics.
It features multiple black burst outputs and character identification that can be positioned as needed, enhancing usability for detailed testing and setup.
Testwall can supply the used Tektronix TSG200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TSG200.
