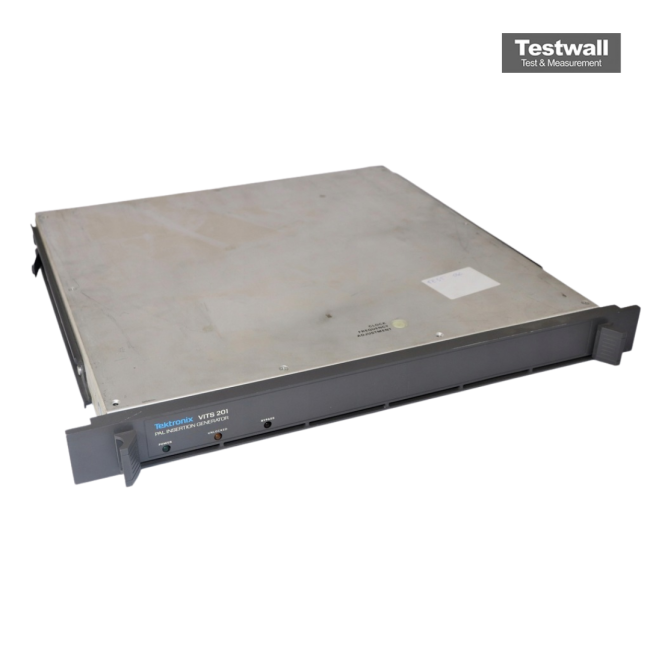

Tektronix VITS201
TS Generator & inserter/deleter
NTSC, PAL Signal Standards Supported
Generates VITS (Vertical Interval Test Signals) for broadcast video testing Insertion Test Signal Generator
Lines 17, 18, 330, 331 (NTSC); Lines 19, 20, 332, 333 (PAL) Video Lines Supported
Multiburst, sin² pulse, bar, NTC-7 composite, luminance and chrominance signals Test Signals Included
75 Ohms Output Impedance
| Attribute | Value |
|---|---|
| Signal Standards Supported | NTSC, PAL |
| Insertion Test Signal Generator | Generates VITS (Vertical Interval Test Signals) for broadcast video testing |
| Video Lines Supported | Lines 17, 18, 330, 331 (NTSC); Lines 19, 20, 332, 333 (PAL) |
| Test Signals Included | Multiburst, sin² pulse, bar, NTC-7 composite, luminance and chrominance signals |
| Output Impedance | 75 Ohms |
| Input Sync Reference | External composite sync or composite video reference input |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Form Factor | Rack-mountable instrument |
| Application | Broadcast television transmission quality monitoring and signal path verification |
| Model | VITS201 |
|---|
The Tektronix VITS201 is a versatile digital composite signal generator supporting CCIR, EBU, and UK National ITS standards. It features four external ITS inputs and ensures accurate source identification and regeneration of program line sync and burst signals.
Designed to operate even in the presence of sound in syncs, it offers multiple modes for loss of program input: external input to program out, internal generator to program out, or program line bypass.
Testwall can supply the used Tektronix VITS201, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix VITS201.
