Tektronix TSG601
| Attribute | Value |
|---|---|
| Output Frequency Range | 1 Hz to 6 GHz |
| Frequency Resolution | 1 Hz |
| Output Power Range | -127 dBm to +13 dBm |
| Output Power Resolution | 0.1 dB |
| Spectral Purity (Phase Noise) | -105 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Output Impedance | 50 Ohms |
| Frequency Accuracy | ±1 ppm (with internal timebase) |
| Power Supply | 90 to 250 VAC, 47 to 63 Hz |
| Interface/Connectivity | GPIB (IEEE-488), RS-232 |
| Model | TSG601 |
|---|

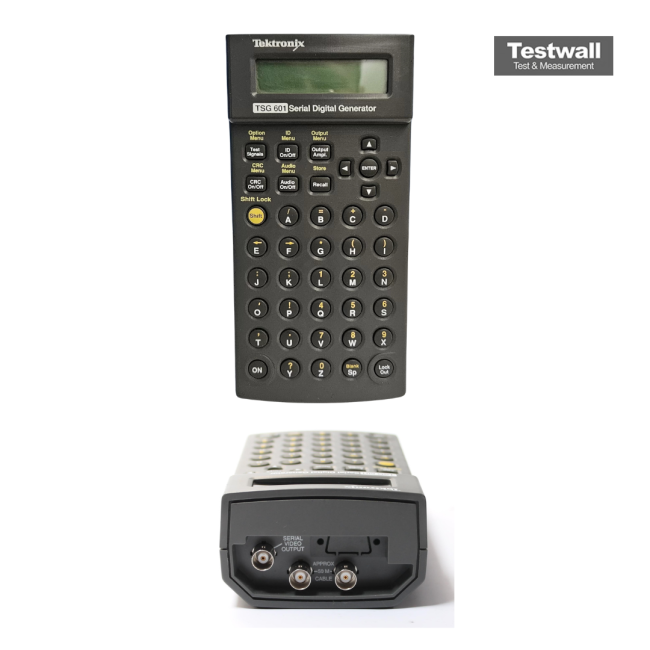

The Tektronix TSG601 is a portable SDI signal generator designed for professional digital video and broadcast applications. It delivers 270 Mb/s CCIR 601-compliant video with programmable test patterns, embedded data, and both 8-/10-bit NRZI-scrambled formats. Features include variable launch amplitude, built-in 50m cable simulator, and embedded audio support for comprehensive performance testing.
Use the TSG601 to evaluate receiver sensitivity, PLL recovery, and cable equalization. It supports 16 test signals, ID overlays, and preset configurations for fast field deployment.
Testwall can supply the used Tektronix TSG601, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TSG601.
