Tektronix WFM91D
Multifunction Monitor
Waveform Monitor with Rasterizer capabilities Display Type
SD, HD, and 3G-SDI video signals Signal Formats Supported
3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M) SDI Input
Embedded audio monitoring with Dolby support Audio Monitoring
Waveform, Vector, Gamut, Audio, Datalist, and Ancillary Data displays Measurement Displays
| Attribute | Value |
|---|---|
| Display Type | Waveform Monitor with Rasterizer capabilities |
| Signal Formats Supported | SD, HD, and 3G-SDI video signals |
| SDI Input | 3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M) |
| Audio Monitoring | Embedded audio monitoring with Dolby support |
| Measurement Displays | Waveform, Vector, Gamut, Audio, Datalist, and Ancillary Data displays |
| Gamut Monitoring | Diamond, Split Diamond, and Arrowhead gamut displays for out-of-gamut detection |
| Closed Captioning | Supports CEA-608 and CEA-708 closed caption monitoring and decoding |
| Reference Input | External reference input supporting Bi-level and Tri-level sync signals |
| Loudness Monitoring | ITU-R BS.1770 loudness measurement and logging capability |
| Connectivity | Ethernet interface for remote control and monitoring via web browser |
Tektronix WFM91D Options:
- WFM91D - Opt. 01 - NiMH battery
- WFM91D - Opt. 33 - Travel line package. Includes: Carrying case, NiMH battery pack, desk stand and viewing hood
| Model | WFM91D |
|---|

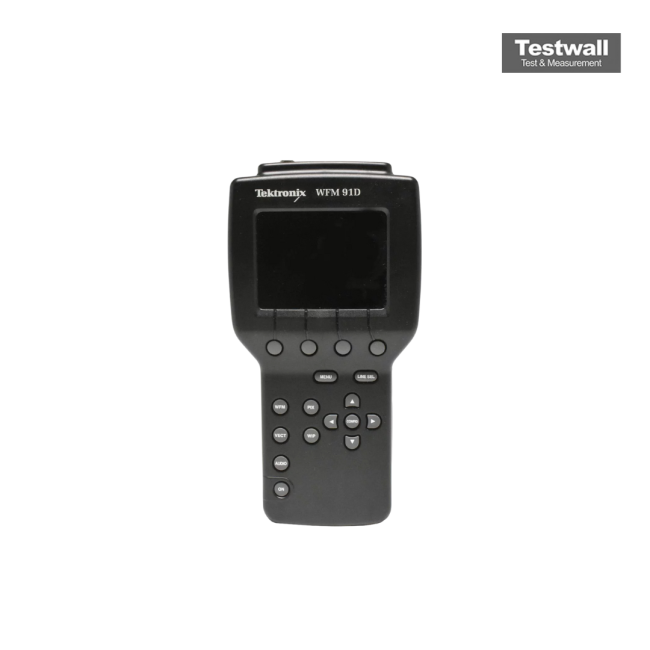

The Tektronix WFM91D is a handheld PAL waveform monitor offering multi-function capabilities ideal for field production and equipment installation. Supporting analog composite and 270 Mbps SDI systems, it provides essential analysis tools in a battery-powered unit.
Equipped with versatile monitoring modes, it facilitates setup, timing, and troubleshooting in compact, portable form, merging four instruments into one handheld device.
Testwall can supply the used Tektronix WFM91D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM91D.
