Tektronix TV1350
| Attribute | Value |
|---|---|
| Display Type | Waveform Monitor |
| Video Standards Supported | NTSC, PAL |
| Input Impedance | 75 Ohm |
| Bandwidth | 5 MHz |
| Number of Channels | 2 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 71°C (-40°F to 160°F) |
| Dimensions (H x W x D) | 133 mm x 213 mm x 394 mm (5.25 in x 8.38 in x 15.5 in) |
| Weight | Approximately 4.5 kg (9.9 lbs) |
| Model | TV1350 |
|---|

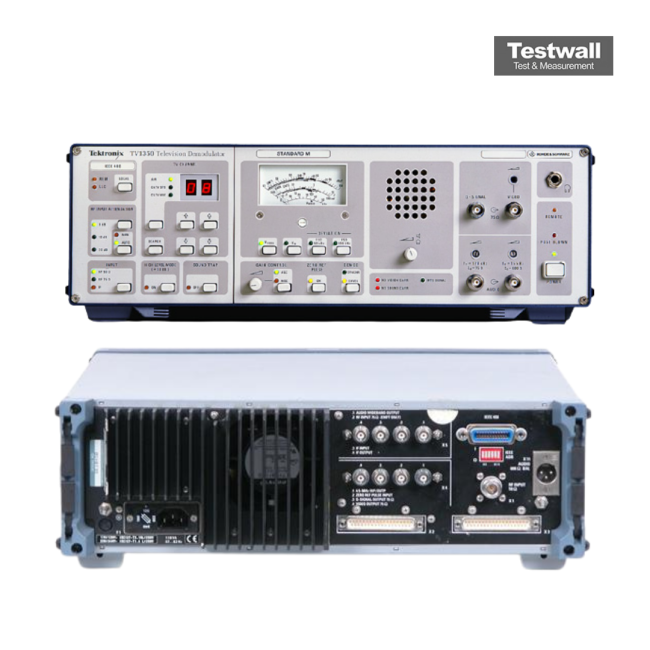

The Tektronix TV1350 is a continuously tunable test receiver and demodulator supporting TV Bands and CATV channels up to 880 MHz. It offers envelope/synchronous detection, dual video/quadrature outputs, selectable IF gain, and standards M, D/K, B/G, I, K1 with precision channel tuning and ±100 kHz offset compensation.
Ideal for off-air and cable measurements, the TV1350 ensures reliable signal demodulation with user-friendly operation, built-in loudspeaker, headphone jack, and optional GPIB interface.
Testwall can supply the used Tektronix TV1350, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TV1350.
