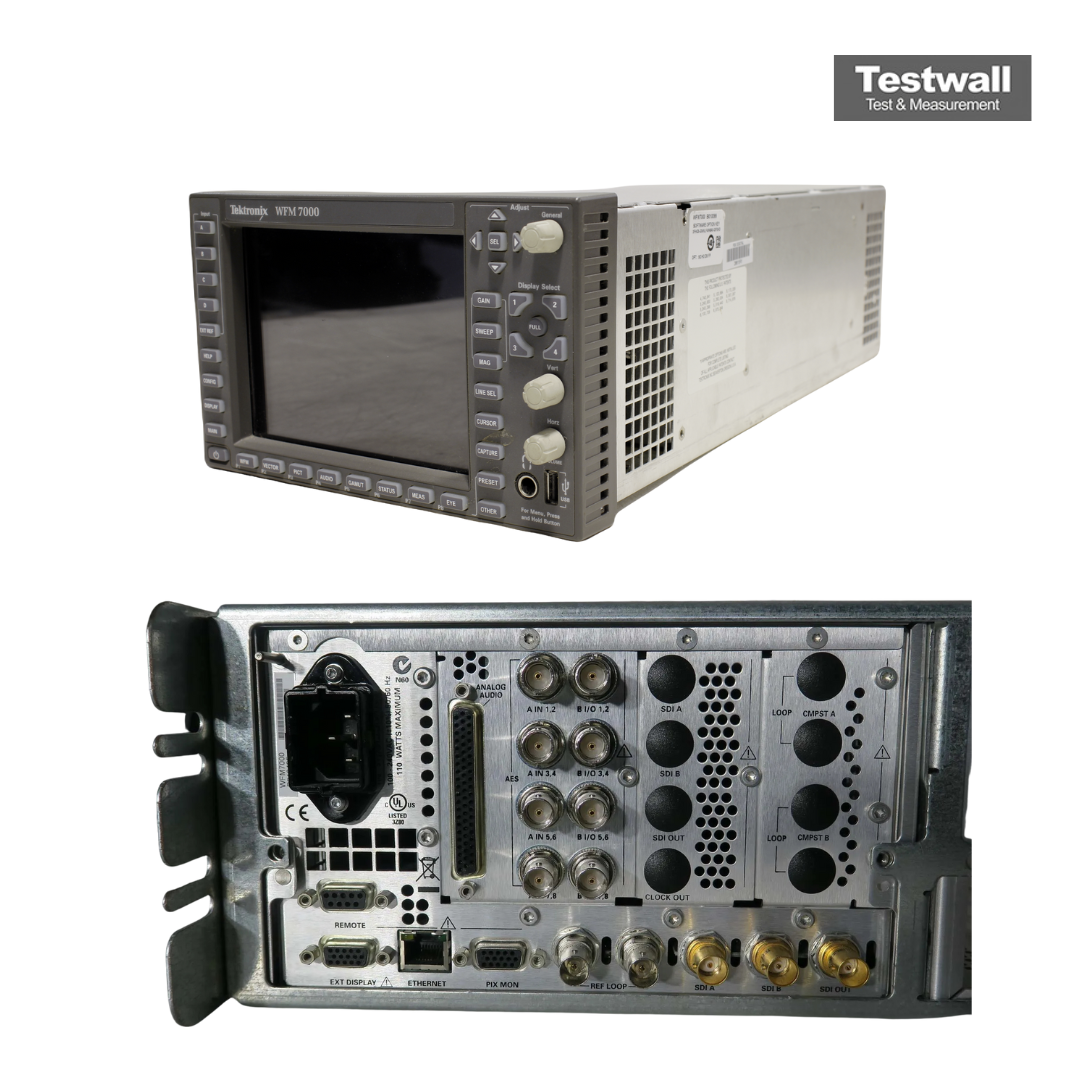

Tektronix WFM7000
| Attribute | Value |
|---|---|
| Display Type | Raster flat panel LCD display |
| Display Resolution | 1024 x 768 pixels |
| Video Standards Supported | SD, HD, and 3 Gb/s SMPTE standards including SMPTE 259M, SMPTE 292M, SMPTE 424M |
| Number of SDI Inputs | 4 inputs (2 active, 2 passive loop-through) |
| Audio Monitoring | Embedded audio monitoring for up to 16 channels; supports AES/EBU digital audio |
| Waveform Display Modes | Waveform, Vector, Parade, Overlay, Picture, Audio, Datalist, Gamut, and Status displays |
| Gamut Monitoring | Diamond, Split Diamond, and Arrowhead gamut displays for composite and RGB gamut monitoring |
| Closed Caption Support | Supports CEA 608 and CEA 708 closed caption monitoring and decoding |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 60 W maximum power consumption |
| Operating Temperature Range | 0°C to +50°C (32°F to 122°F) |
Tektronix WFM7000 Options:
- WFM7000 - CPS - Composite Analog Monitoring (2 Composite Analog Inputs)
- WFM7000 - SD - Standard Definition Monitoring (2 SD SDI Inputs)
- WFM7000 - HD - High-definition Monitoring
- WFM7000 - DS - Audio Monitoring for AES/EBU formats (embedded and AES/EBU inputs)
- WFM7000 - AD - DS capabilities plus Analog Audio Monitoring
- WFM7000 - A0 - North America power
- WFM7000 - A1 - Universal Euro power
- WFM7000 - A2 - United Kingdom power
- WFM7000 - A3 - Australia power
- WFM7000 - A4 - 240 V, North America power
- WFM7000 - A5 - Switzerland power
- WFM7000 - A6 - Japan power
- WFM7000 - A10 - China power
- WFM7000 - A99 - No power cord or AC adapter
- WFM7000 - L0 - English manual
- WFM7000 - L5 - Japanese manual
- WFM7000 - L7 - Simplified Chinese manual
- WFM7000 - CA1 - Single Calibration
- WFM7000 - C3 - Calibration Service 3 Years
- WFM7000 - C5 - Calibration Service 5 Years
- WFM7000 - D1 - Calibration Data Report
- WFM7000 - D3 - Calibration Data Report 3 years (with Option C3)
- WFM7000 - D5 - Calibration Data Report 5 years (with Option C5)
- WFM7000 - R3 - Repair Service 3 years (including warranty)
- WFM7000 - R5 - Repair Service 5 years (including warranty)
- WFM7000 - NRC - No portable or rack cabinet
- WFM7000 - 01 - Portable cabinet
- WFM7000 - 02 - Dual rack cabinet (same as WFM7F05 option NN)
- WFM7000 - 05 - Dual rack cabinet (same as WFM7F05 option ON)
- WFM7000 - 06 - Filler panel for dual rack cabinet
- WFM7000 - 07 - Drawer for dual rack cabinet
- WFM7000 - 62 - Analog audio breakout cable
| Model | WFM7000 |
|---|
The Tektronix WFM7000 is a high-performance HD/SD‑SDI waveform monitor and vectorscope, supporting multi-standard signal formats including SMPTE 292 and ITU‑R BT.601. It provides flexible waveform, vector, and audio displays, with customizable multiview layouts and frame-accurate LTC decoding.
Advanced error detection tools include gamut analysis, pulse checks, and alarm/event logging, ensuring comprehensive signal integrity analysis for professional AV workflows.
Testwall can supply the used Tektronix WFM7000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM7000.
