Tektronix
Tektronix TVS621A
2-Channel 250MHz 1 GS / s 15K Waveform Analyser
21 Channels Number of Channels
200 MHz Bandwidth
1 GS/s Sample Rate
15,000 Points per Channel Record Length
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 21 Channels |
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Record Length | 15,000 Points per Channel |
| Vertical Resolution | 8-bit |
| Input Impedance | 1 MΩ |
| Time Base Range | 1 ns/div to 10 s/div |
| Display Type | Color LCD Display |
| Interface | GPIB, RS-232 |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Tektronix TVS621A Options:
- TVS621A - C3 - Three years of Calibration Services
- TVS621A - C5 - Five years of Calibration Services
- TVS621A - D3 - Test Data for Opt. C3
- TVS621A - D5 - Test Data for Opt. C5
- TVS621A - R5 - Repair warranty extended to cover five years
| Model | TVS621A |
|---|

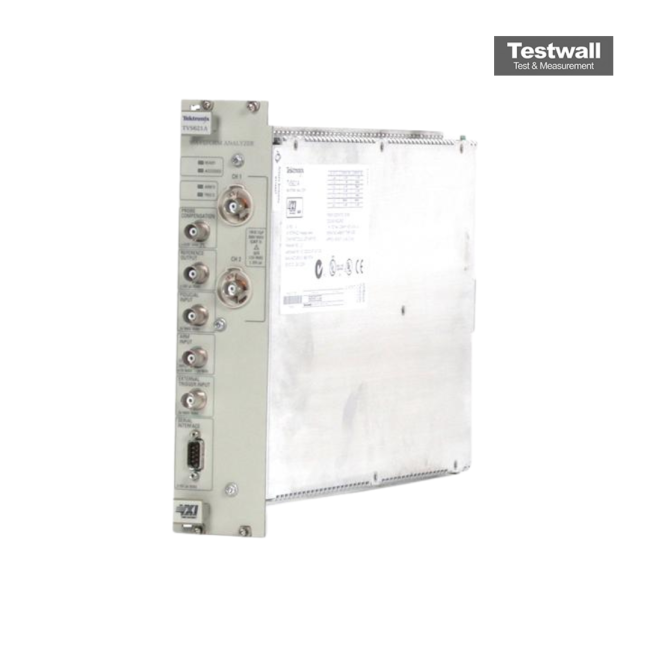

The Tektronix TVS621A is a 2-channel, 250 MHz VXI Waveform Analyzer with 1 GS/s real-time sampling rate, designed for high-speed signal analysis and data acquisition applications.
It offers precision waveform capture, ideal for embedded systems testing and digital circuit verification. Compact VXI format ensures seamless integration in automated systems.
Testwall can supply the used Tektronix TVS621A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TVS621A.
