Tektronix WFM2200
| Attribute | Value |
|---|---|
| Display Type | 3.5-inch LCD color display |
| Display Resolution | 320 x 240 pixels |
| Video Standards Supported | SD (NTSC, PAL), HD (720p, 1080i, 1080p), 3G-SDI |
| SDI Inputs | 2 x BNC SDI inputs with loop-through |
| Audio Monitoring | Embedded SDI audio monitoring, up to 16 channels |
| Waveform Display Modes | Waveform, Vectorscope, Parade, Overlay, Diamond, Lightning |
| Power Supply | AC adapter or optional battery operation (Anton Bauer / V-Mount compatible) |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (W x H x D) | Approximately 142 mm x 101 mm x 46 mm (5.6 in x 4.0 in x 1.8 in) |
| Weight | Approximately 0.54 kg (1.2 lbs) without battery |
| Model | WFM2200 |
|---|

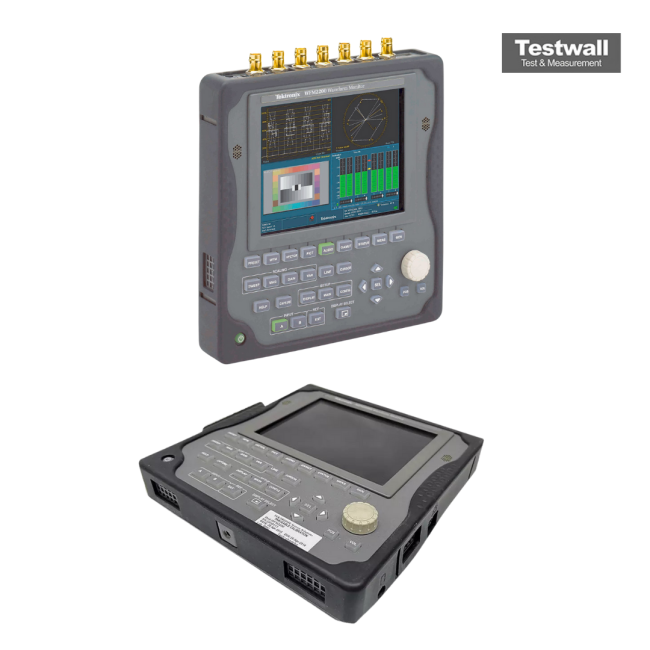

The Tektronix WFM2200 Handheld, Multiformat, Multistandard Waveform Monitor delivers precision signal monitoring in a compact handheld design, supporting a wide range of video formats and standards. Featuring a bright display and comprehensive waveform, vector, and picture monitoring capabilities, it ensures accurate signal analysis. Its multiformat, multistandard compatibility makes it ideal for broadcast, production, and field applications requiring portability without compromising performance.
Ideal for broadcast engineers, the Tektronix WFM2200 offers real-time monitoring, battery operation, and intuitive controls, making it suitable for on-site diagnostics and professional video quality assurance.
Testwall can supply the used Tektronix WFM2200 Handheld, Multiformat, Multistandard Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM2200 Handheld, Multiformat, Multistandard Waveform Monitor.
