Tektronix WFM2300
| Attribute | Value |
|---|---|
| Form Factor | Portable/Handheld Waveform Monitor |
| Display Type | 3.5-inch LCD Color Display |
| Video Standards Supported | SD (Standard Definition) Video Monitoring |
| Signal Inputs | Two SD-SDI Inputs (BNC connectors) |
| Audio Monitoring | Embedded Audio Support (up to 16 channels) |
| Waveform Display Modes | Waveform, Vector, Parade, Overlay |
| Power Supply | AC Adapter or Rechargeable Battery Pack |
| Battery Life | Approximately 2 hours with standard battery |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (W x H x D) | Approximately 165 mm x 108 mm x 46 mm (6.5 in x 4.25 in x 1.8 in) |
Tektronix WFM2300 Handheld, Multiformat, Multistandard Waveform Monitor Options:
- WFM2300 - 3G - Adds Support For 3G-Sdi Signal Formats
- WFM2300 - ADVP - Adds Out-Of-Service A/V Delay Measurement And Propagation Time Measurement
- WFM2300 - ASI - Adds Support For Asi Signal Format
- WFM2300 - DATA - Adds Ancillary Data Monitoring
- WFM2300 - DBE - Adds Dolby E Analysis And Dolby E Test Signals
- WFM2300 - LOUD - Adds Audio Loudness Monitoring Capabilities Including Loudness Meter
- WFM2300 - SFP - Add Optical Input/Output Sdi Module Support
- WFM2300 - SFP-HDMI - Adds Hdmi Input Module Support
| Model | WFM2300 |
|---|

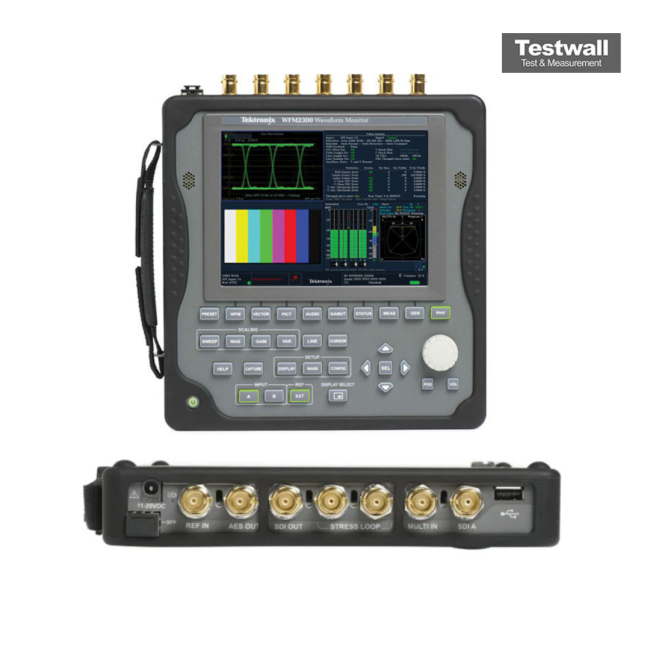

The Tektronix WFM2300 Handheld, Multiformat, Multistandard Waveform Monitor is a portable instrument designed for field production setup and troubleshooting. It features SDI Eye pattern measurement including eye amplitude, rise/fall time, and overshoot, alongside coaxial cable simulation and margin test loop for secure system installation. It also supports optical SDI input/output monitoring compliant with SMPTE297 and HDMI signal monitoring.
Ideal for broadcast and production environments, this compact unit offers precision signal analysis, reliable performance, and versatile connectivity options for professional workflows in various formats and standards.
Testwall can supply the used Tektronix WFM2300 Handheld, Multiformat, Multistandard Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM2300 Handheld, Multiformat, Multistandard Waveform Monitor.
