Tektronix
Tektronix 1780
Video Signal Measurement and Analysis Measurement Function
NTSC, PAL, SECAM Video Standards Supported
2 Channels Number of Channels
Waveform Monitor and Vectorscope Display Type
75 Ohms Input Impedance
| Attribute | Value |
|---|---|
| Measurement Function | Video Signal Measurement and Analysis |
| Video Standards Supported | NTSC, PAL, SECAM |
| Number of Channels | 2 Channels |
| Display Type | Waveform Monitor and Vectorscope |
| Input Impedance | 75 Ohms |
| Bandwidth | 5 MHz |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 213 mm x 432 mm (5.25 in x 8.38 in x 17 in) |
| Weight | Approximately 5.9 kg (13 lbs) |
| Model | 1780 |
|---|

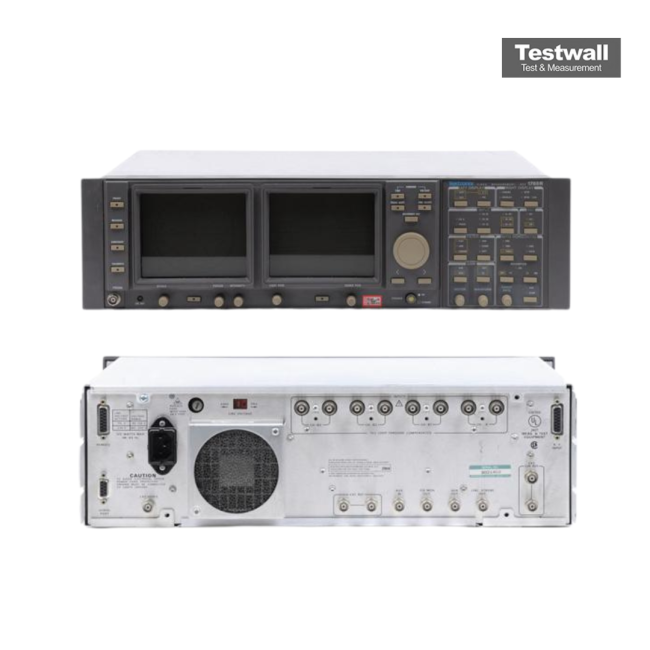

The Tektronix 1780 is a rack-mountable waveform monitor supporting NTSC, PAL, and SECAM, equipped with dual-channel input, waveform/vector displays, and loop-through inputs for uninterrupted analysis.
Ideal for post-production, broadcast, and OB vans, it ensures high-precision monitoring of video signals with selectable line/field display and CRT-based feedback.
Testwall can supply the used Tektronix 1780, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1780.
