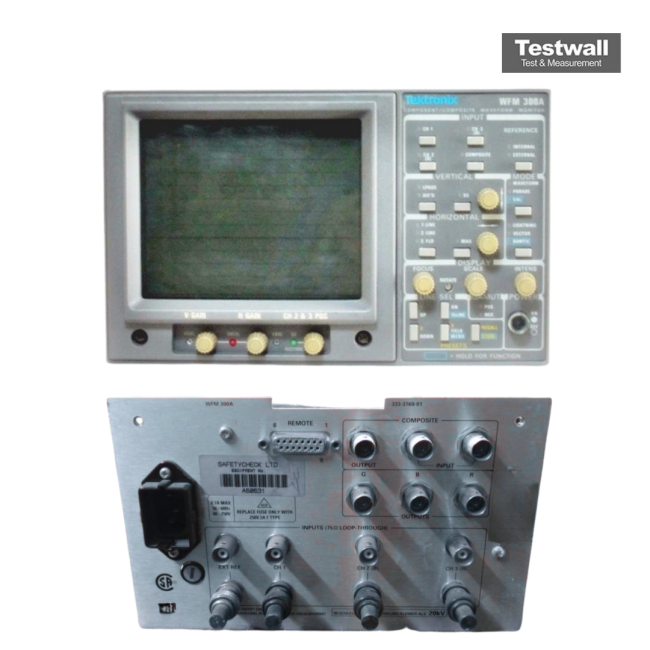

Tektronix WFM300A
| Attribute | Value |
|---|---|
| Display Type | Waveform Monitor with LCD Display |
| Input Signal Format | SD (Standard Definition) Video Signals |
| Video Standards Supported | NTSC, PAL |
| Input Connectors | BNC connectors for composite and component video inputs |
| Display Modes | Waveform, Vector, Parade, and Overlay modes |
| Gamut Monitoring | Diamond and Split Diamond displays for gamut monitoring |
| Audio Monitoring | Embedded and AES/EBU audio monitoring support |
| Power Requirements | 100–240 VAC, 50/60 Hz universal power supply |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Form Factor | Half-rack portable unit suitable for field and studio use |
| Model | WFM300A |
|---|
The Tektronix WFM300A is a component television signal monitor tailored for RGB, Betacam, and MIL formats, also supporting NTSC/PAL composite signals. It features unique Lightning and Bowtie displays, electronic graticules, and detailed signal comparisons with selectable sweep rates.
Ideal for precise equipment alignment and signal evaluation in production environments, it supports color hue/saturation analysis, gamut monitoring, and dual picture monitor outputs with component transcoding.
Testwall can supply the used Tektronix WFM300A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM300A.
