Tektronix 1741A
NTSC, PAL Video Standards
Waveform Monitor and Vectorscope Display Type
2 Channels Input Channels
75 Ohms Input Impedance
5 MHz Bandwidth
| Attribute | Value |
|---|---|
| Video Standards | NTSC, PAL |
| Display Type | Waveform Monitor and Vectorscope |
| Input Channels | 2 Channels |
| Input Impedance | 75 Ohms |
| Bandwidth | 5 MHz |
| CRT Display Size | 6-inch Rectangular CRT |
| Power Requirements | 90–250 VAC, 45–66 Hz |
| Power Consumption | 60 Watts Maximum |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 212 mm x 432 mm (5.25 in x 8.35 in x 17 in) |
Tektronix 1741A Options:
- 1741A - 74 - White CRT Phosphor for any model
| Model | 1741A |
|---|

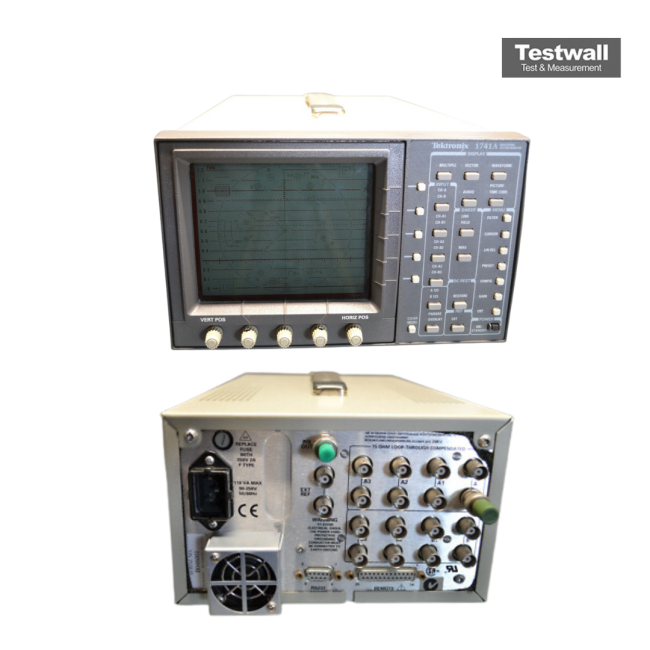

The Tektronix 1741A is a precision analog waveform vector monitor, supporting NTSC and PAL standards for comprehensive composite video signal analysis. It enables accurate color bar alignment, differential phase and gain measurements, with RGB and component signal compatibility.
Perfect for broadcast video quality control, it features vector and waveform monitoring, an on-screen measurement display, and multi-standard support.
Testwall can supply the used Tektronix 1741A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1741A.
