Tektronix WFM601
| Attribute | Value |
|---|---|
| Signal Standards Supported | SMPTE 259M (SD), SMPTE 292M (HD), 525/625 line component and composite |
| Input Impedance | 75 Ω |
| Display Type | Waveform, Vectorscope, Parade, and Gamut monitoring displays |
| Serial Digital Inputs | 2 x SDI inputs with active loop-through |
| Analog Inputs | Component (YPbPr) and composite analog video inputs |
| Audio Monitoring | Embedded SDI audio monitoring, AES/EBU digital audio support |
| Form Factor | Half-rack 1RU modular unit compatible with WFM6100 mainframe |
| Power Consumption | Approximately 20W typical |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Compliance & Standards | SMPTE, ITU-R BT.601, ITU-R BT.709, CE, UL/CSA certified |
Tektronix WFM601 Options:
- WFM601 - A1 - Universal Europe locking power cord
- WFM601 - A2 - United Kingdom power cord
- WFM601 - A3 - Australia power cord
- WFM601 - A5 - Switzerland power cord
| Model | WFM601 |
|---|

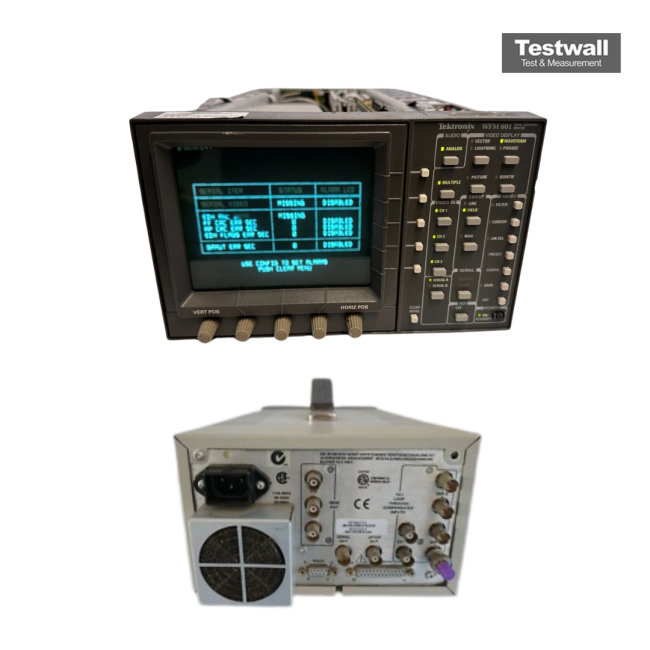

The Tektronix WFM601A/WFM601E/WFM601M monitors are half-rack waveform/vector units designed for 270MB serial component environments. With two loopthrough inputs, analog/digital outputs, and patented Lightning, Diamond, and Arrowhead displays, they enable high-precision RGB/Y-Pb-Pr video analysis and monitoring. The WFM601A supports creative setups, the WFM601E adds digital transport layer analysis, and the WFM601M integrates full data diagnostics for installation and maintenance engineers.
Ideal for production facilities, these monitors deliver real-time video analysis, error detection, signal integrity, and standard compliance with intuitive analog-style interfaces for digital sources.
Testwall can supply the used Tektronix WFM601A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM601A.
