Rohde & Schwarz EFA20
| Attribute | Value |
|---|---|
| Frequency Range | 47 MHz to 870 MHz |
| Measurement Standards Supported | DVB-T, DVB-C, ATSC, PAL, SECAM, NTSC |
| Input Impedance | 75 Ohm |
| Level Measurement Range | -20 dBm to +10 dBm |
| Display | 10.4-inch color TFT LCD display |
| Demodulation Bandwidth | Up to 8 MHz |
| MER Measurement Range | Up to 40 dB |
| Power Supply | AC 100 V to 240 V, 50/60 Hz |
| Interface Connectivity | GPIB, RS-232, USB, LAN (Ethernet) |
| Operating Temperature Range | 0 °C to +45 °C |
| Model | EFA20 |
|---|

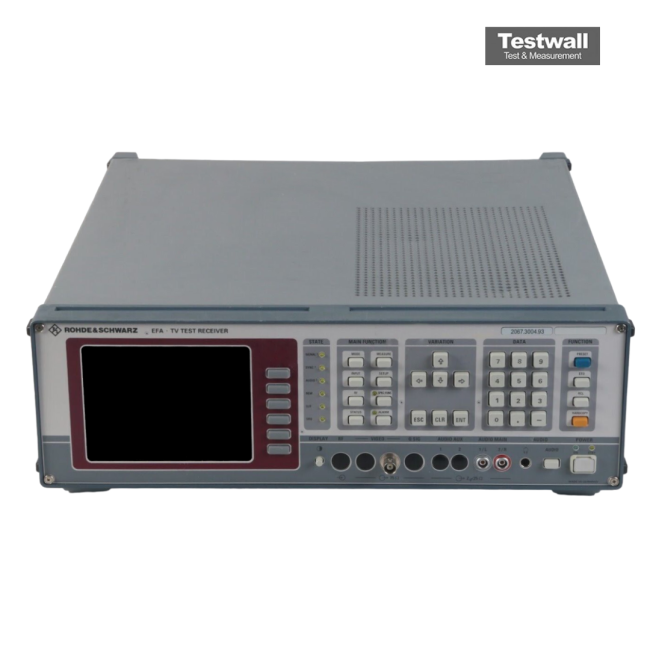

The Rohde & Schwarz EFA20 is a powerful and adaptable RF receiver and demodulator, designed to support both analog and digital TV signals. This model, 2067.9002.20, features the Option B1 QAM Demodulator, enabling precise testing for a variety of broadcasting systems. It is ideal for production, development, and installation of modulators and transmitters.
Suitable for cable headend acceptance tests and transmitter installations, the R&S®EFA20 ensures high signal integrity and reliable performance in complex testing environments.
Testwall can supply the used Rohde & Schwarz EFA20, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz EFA20.
