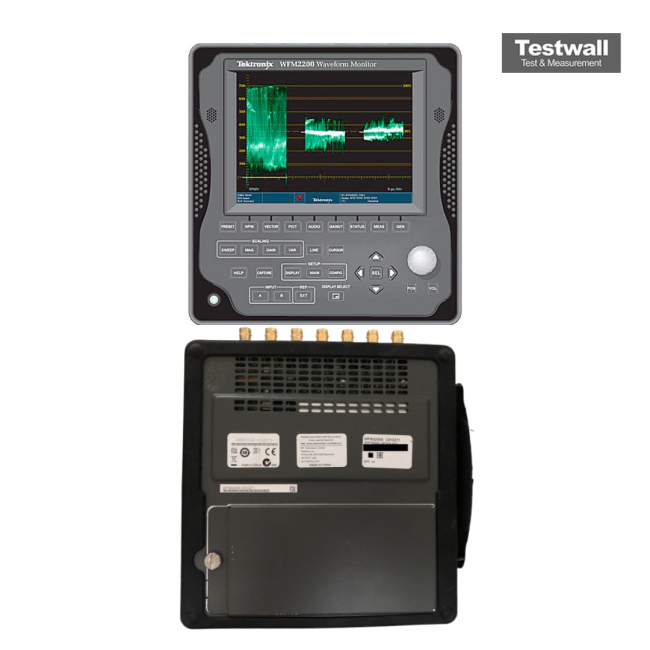

Tektronix WFM2200A
| Attribute | Value |
|---|---|
| Display | 3.5-inch color LCD display |
| Video Standards Supported | SD (525i/625i), HD (720p, 1080i, 1080p), 3G-SDI |
| Input Signal Types | SD-SDI, HD-SDI, 3G-SDI (SMPTE 259M, 292M, 424M) |
| Number of SDI Inputs | 2 inputs with passive loop-through |
| Waveform Display Modes | Waveform, Vector, Parade, Overlay, Picture, Audio |
| Audio Monitoring | Embedded SDI audio monitoring, up to 16 channels |
| Power Requirements | AC 100–240 V, 50/60 Hz; DC 12 V option available |
| Power Consumption | Approximately 18 W maximum |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (H x W x D) | Approximately 111 mm x 190 mm x 57 mm (4.4 in x 7.5 in x 2.2 in) |
| Model | WFM2200A |
|---|
The Tektronix WFM2200A Handheld, Multiformat, Multistandard Waveform Monitor offers portable, high-performance waveform monitoring with support for multiple video formats and standards. It features a bright display, comprehensive measurement tools, and battery operation, making it ideal for field and studio use. Advanced analysis functions ensure precise monitoring of signal integrity across diverse workflows.
Its compact handheld design allows quick setup, efficient signal validation, and flexibility across broadcasting, production, and post-production environments.
Testwall can supply the used Tektronix WFM2200A Handheld, Multiformat, Multistandard Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM2200A Handheld, Multiformat, Multistandard Waveform Monitor.
