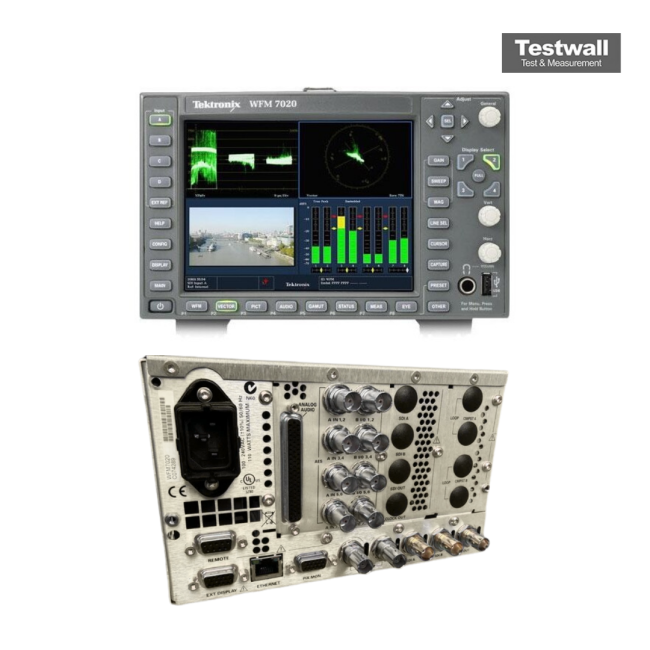

Tektronix WFM7020
| Attribute | Value |
|---|---|
| Display | 8.4-inch raster display with 1024 x 768 resolution |
| SDI Input Formats Supported | SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3 Gb/s SDI (SMPTE 424M) |
| Number of SDI Inputs | 4 SDI inputs with passive loop-through outputs |
| Audio Monitoring | Supports embedded audio (SMPTE 272M, SMPTE 299M) up to 16 channels |
| Waveform Display Modes | Waveform, Vector, Gamut, Audio, Datalist, and Picture display modes |
| Gamut Monitoring | Diamond, Split Diamond, and Arrowhead gamut displays for composite and component signals |
| Ancillary Data Support | Ancillary data monitoring including closed captioning, timecode, and AFD |
| Reference Input | External reference input supporting Black Burst and Tri-Level Sync |
| Connectivity and Interfaces | Ethernet (RJ-45), USB 2.0 ports, remote control via Ethernet |
| Power Requirements | 100–240 VAC, 50/60 Hz, maximum 150 W power consumption |
| Model | WFM7020 |
|---|
The Tektronix WFM7020 Multi-standard Waveform Monitor offers precise multi-standard waveform monitoring with exceptional accuracy and clarity. It supports multiple video formats, ensuring compatibility with diverse broadcast systems. Featuring advanced measurement tools, it delivers reliable signal analysis, aiding engineers in maintaining optimal signal quality in professional environments.
Ideal for broadcast facilities and post-production houses, the WFM7020 ensures accurate monitoring of video waveforms, vectorscopes, and signal integrity. Its versatile format support makes it an essential tool for modern media workflows.
Testwall can supply the used Tektronix WFM7020 Multi-standard Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM7020 Multi-standard Waveform Monitor.
