Tektronix WFM90D
| Attribute | Value |
|---|---|
| Display Type | Waveform Monitor with Rasterizer capabilities |
| Signal Standards Supported | SD, HD, and 3G-SDI video signals |
| Input Connectors | BNC connectors for SDI inputs |
| Form Factor | Half-rack, 1RU portable/modular unit |
| Audio Monitoring | Embedded audio monitoring and metering support |
| Gamut Monitoring | Diamond, Arrowhead, and Spearhead gamut displays |
| Eye Diagram | SDI physical layer eye pattern display and jitter measurement |
| Closed Captioning | CEA 608/708 closed caption monitoring and decoding |
| Ancillary Data | ANC data monitoring including timecode and metadata |
| Power Requirements | Universal AC power input, 100–240V AC, 50/60 Hz |
Tektronix WFM90D Options:
- WFM90D - Opt. 01 - NiMH battery
- WFM90D - Opt. 33 - Travel line package. Includes: Carrying case, NiMH battery pack, desk stand and viewing hood
| Model | WFM90D |
|---|

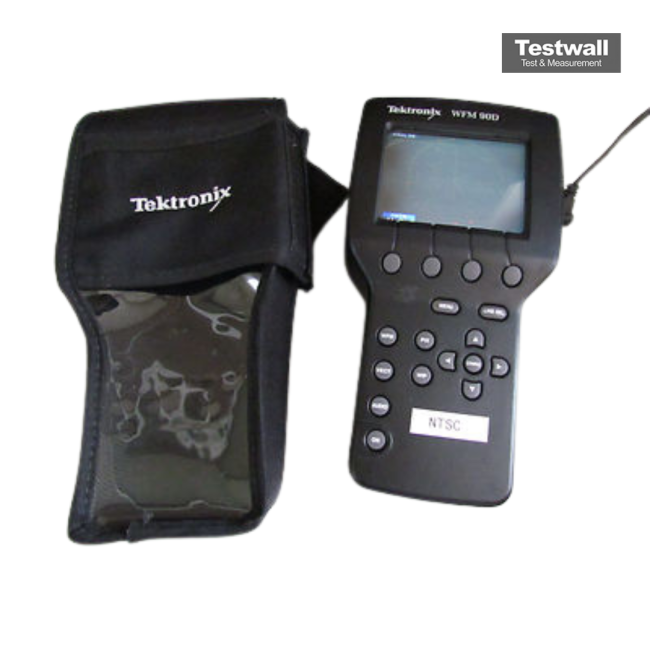

The Tektronix WFM90D is a compact, battery-powered handheld video/audio monitor designed for analog composite and 270 Mbps SDI systems. It integrates a 4-inch color LCD, waveform monitor, vectorscope, picture monitor, and audio analysis tools into one portable unit, providing features such as EDH packet reporting, alarm modes, and multiple sweep and gain settings.
Ideal for field production and equipment installation, the WFM90D ensures accurate setup and troubleshooting of video and audio systems with clear, real-time feedback and menu-driven controls.
Testwall can supply the used Tektronix WFM90D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM90D.
