Tektronix

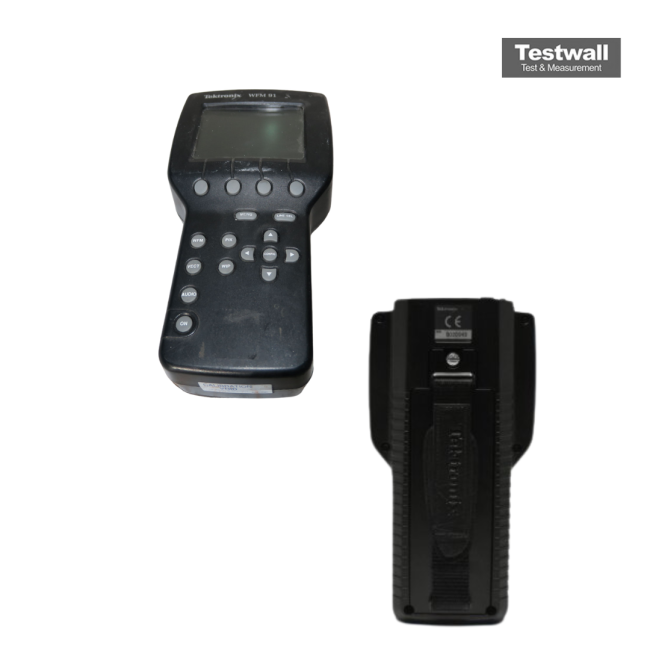

Tektronix WFM91
PAL Handheld Vectorscope
Monochrome CRT Display Type
2 Number of Channels
NTSC, PAL, SECAM Video Standards Supported
5 MHz Bandwidth
75 Ohms Input Impedance
| Attribute | Value |
|---|---|
| Display Type | Monochrome CRT |
| Number of Channels | 2 |
| Video Standards Supported | NTSC, PAL, SECAM |
| Bandwidth | 5 MHz |
| Input Impedance | 75 Ohms |
| Power Consumption | 55 W |
| Power Supply | 90 to 250 VAC, 48 to 440 Hz |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 212 mm x 368 mm (5.25 in x 8.35 in x 14.5 in) |
| Weight | 5.5 kg (12.1 lbs) |
| Model | WFM91 |
|---|
The Tektronix WFM91 is a portable waveform monitor tailored for field operations, delivering precise NTSC and PAL video signal analysis in a compact, battery-powered unit. It features a CRT waveform display, loop-through I/O, and robust casing designed for mobile broadcast environments.
Ideal for verifying video signals on-the-go, the WFM91 is lightweight and rugged, with loop-through connectivity ensuring seamless integration in professional video workflows.
Testwall can supply the used Tektronix WFM91, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM91.
