Tektronix
Tektronix RTX130A
MPEG & RF Signal Generator
100 kHz to 3 GHz Frequency Range
-110 dBm to +13 dBm Output Power Range
1 Hz Frequency Resolution
AM, FM, PM, Pulse Modulation Modulation Types
±1 ppm (with internal reference) Frequency Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Output Power Range | -110 dBm to +13 dBm |
| Frequency Resolution | 1 Hz |
| Modulation Types | AM, FM, PM, Pulse Modulation |
| Frequency Accuracy | ±1 ppm (with internal reference) |
| RF Connector Type | Type-N Female, 50 Ohm |
| Display | Built-in touchscreen LCD display |
| Interface/Connectivity | USB, LAN (LXI), GPIB |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
Tektronix RTX130A Options:
- RTX130A - M1 - DVB-C/ITU-T J.83 Annex A Modulation Mode
- RTX130A - M2 - ITU-T J.83 Annex B Modulation Mode
- RTX130A - M3 - ITU-T J.83 Annex C Modulation Mode
- RTX130A - M4 - ATSC Modulation Mode
- RTX130A - SC - Scheduler
- RTX130A - C3 - Calibration Service 3 years
- RTX130A - C5 - Calibration Service 5 years
- RTX130A - D1 - Calibration Data Report
- RTX130A - D3 - Calibration Data Report 3 years (with Opt. C3)
- RTX130A - D5 - Calibration Data Report 5 years (with Opt. C5)
- RTX130A - R3 - Repair Service 3 years
- RTX130A - R5 - Repair Service 5 years
- RTX130A - A0 - U.S. plug, 115 V, 60 Hz
- RTX130A - A1 - Euro plug, 220 V, 50 Hz
- RTX130A - A2 - U.K. plug, 240 V, 50 Hz
- RTX130A - A3 - Australia plug, 240 V, 50 Hz
- RTX130A - A4 - North America plug, 240 V, 50 Hz
- RTX130A - A5 - Switzerland plug, 220 V, 50 Hz
- RTX130A - A6 - Japan plug, 100 V, 110/120 Volt, 60 Hz
- RTX130A - A10 - China plug, 50 Hz
- RTX130A - A99 - No power cord
- RTX130A - L0 - English manual
- RTX130A - L5 - Japanese manual
| Model | RTX130A |
|---|

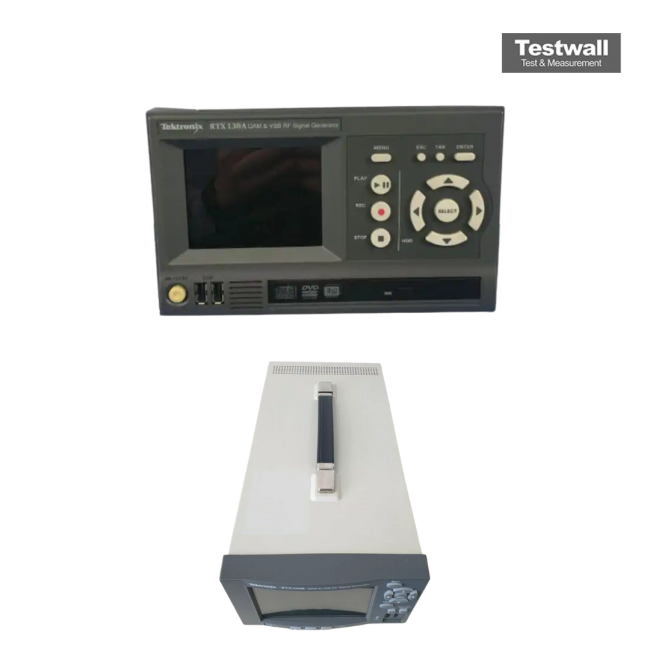

The Tektronix RTX130A is a compact MPEG and RF signal generator that delivers both unmodulated and RF modulated MPEG transport streams, supporting QAM A/B/C and ATSC standards.
Its hard disk-based repeatable test streams, looped with optional PCR jitter, make it ideal for development and manufacturing environments needing consistent signal sources.
Testwall can supply the used Tektronix RTX130A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RTX130A.
